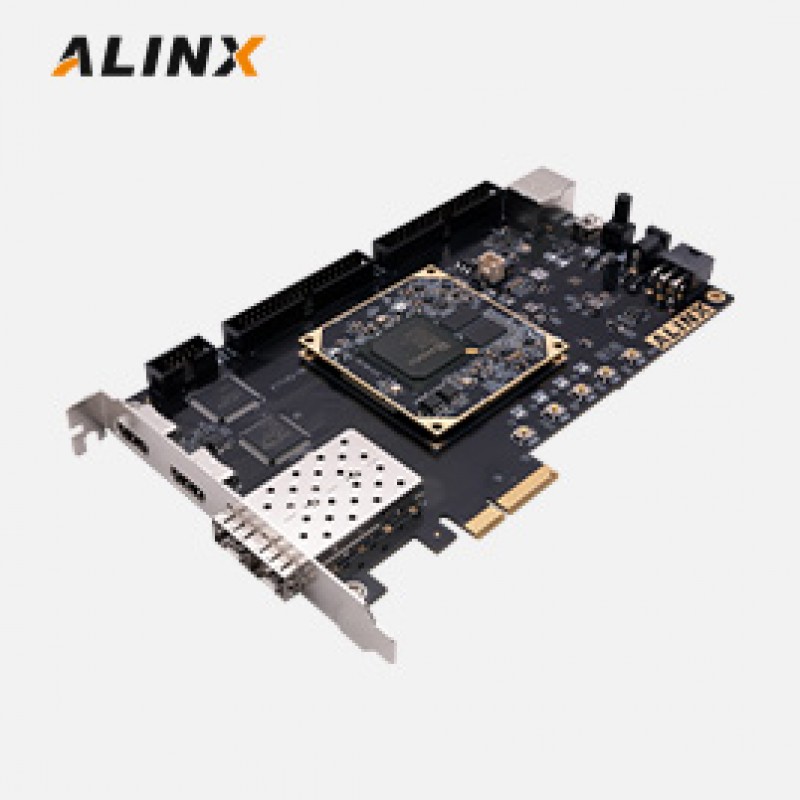

The AXP100B FPGA Development Boar is PANGO Logos2 series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, PCIe, SFP+, HDMI, Gigabit Ethernet.
Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).
● 1 x PCIe® Gen2 ×4 ● 1 x Gigabit Ethernet ● 1 x UART (USB to UART) ● 1 x Micro SD ● 1 x 512 Byte EEPROM 24LC04 ● 1 x Temperature sensor LM75A ● 2 x SFP+ (per line 6.6Gbps) ● 2 x HDMI (1 x HDMI in + 1 x HDMI out) ● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.) ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) + KEY (1 x reset + 4 x KEY) ● 12V single supply ● Dimensions: 188 x 106 mm form factor
Product Information
Specifications
What's Inside
Development Board Features
Featuring the PANGO Logos2 PG2L100H-6IFBG676 Adaptive
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box. The ALINX development board help shorten time-to-market for any PANGO Logos2 based application.
* The AXP100B development board consists of a P100 SoM and base board. If you want to purchase P100 SoM separately. Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX PANGO Logos PG2L100H development board and Some accessories
System-on-Module
1
Base Board
1
Mini USB Cable
1
USB Downloader Cable / set
1
12V Power Adapter
1
PCIe Fence
1
Product Selection Matrix
Product Matrix
Product Model
Preferred Model
FPGA Devices
DDR3 ECC SDRAM
QSPI Flash
USD Price
AXP100B
√
PG2L100H-6IFBG676
1 GB
32 MB
299
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
