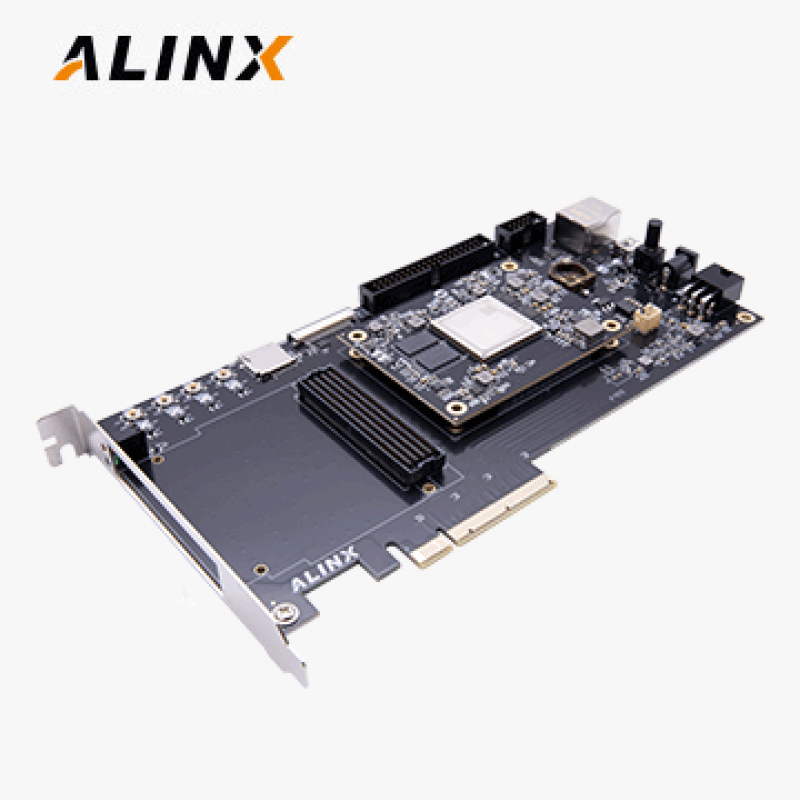

AXKU3 FPGA Dev Board & Kit with AMD Kintex™ US+ XCKU3P

AXKU3 FPGA Dev Board & Kit with AMD Kintex™ US+ XCKU3P
AXKU3 FPGA Dev Board & Kit with AMD Kintex™ US+ XCKU3P
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AXKU3 V2.1
  • SKU: AXKU3 V2.1
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$958.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AXKU5/AXKU3 FPGA development board equipped with the AMD/Xilinx Kintex Ultrascale+™-series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe).

Applications

  • Data Center

    ● Network Acceleration

    ● Storage Acceleration

  • Industrial, Science, Medical

    ● Medical Imaging Backhaul

    ● Machine Vision

  • Wired Communications

    ● PON Access

    ● Optical Transport Network

  • Wireless Communications

    ● Radio

    ● Basebandn


Key Features

  • System-on-Module

    ● AMD/Xilinx Kintex Ultrascale+™:
    ◆ 16nm FinFET FPGA fabric
    ◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
    ◆ More than 2x faster system-level performance per watt compared to Kintex 7 FPGAs
    ● Pluggable module with 2 x Samtec board-to-board connectors
    ● 2 GByte (32-bit) DDR4 SDRAM
    ● 2 x 32 MB QSPI Flash

  • Base Board

    ● FMC HPC (34 pairs lvds ios + 8 pairs GTH)
    ● 1 x PCIe® Gen3 ×8
    ● 1 x Gigabit Ethernet
    ● 1 x UART (USB to UART)
    ● 1 x 4 lane MIPI
    ● 1 x MicroSD
    ● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
    ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED)  KEY(4 x KEY)
    ● 12V single supply
    ● Dimensions: 215 x 111 mm form factor

Product Information

  • Specifications
  • What's Inside
Board Features

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU3P-2FFVB676I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.


* The AXKU3 development board consists of a ACKU3 SoM and base board. If you want to purchase ACKU3 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale+™ XCKU3P FPGA development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU3P device surface.

System-on-Module1Base Board1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1PCle Fence1
Heatsink Kit (preinstalled)1

Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAMQSPI FlashGTYUSD Price
AXKU3√XCKU3P-2FFVB676I2 GB2 x 32 MB16958
AXKU5√XCKU5P-2FFVB676I2 GB2 x 32 MB161123


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AXKU3 V1.1 User Manual

    2026-05-08
    Download
