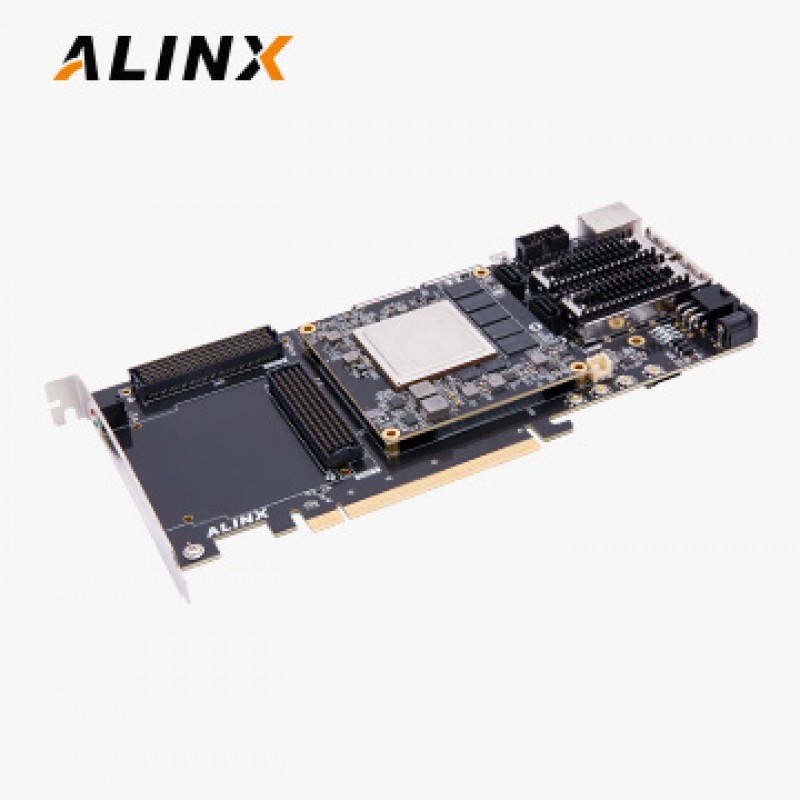

AXKU15 FPGA Dev Board & Kit with AMD Kintex™ US+ XCKU15P

AXKU15 FPGA Dev Board & Kit with AMD Kintex™ US+ XCKU15P
Free
AXKU15 FPGA Dev Board & Kit with AMD Kintex™ US+ XCKU15P
  • Stock: In Stock
  • Model: AXKU15 V2.0
  • SKU: AXKU15 V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$0.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AXKU15 FPGA development board equipped with the AMD/Xilinx Kintex UltraScale+™ series XCKU15P device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, QSFP28, FMC HPC, Gigabit Ethernet.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, QSFP28).

Applications

  • Data Center

    ● Network Acceleration

    ● Storage Acceleration

  • Industrial, Science, Medical

    ● Medical Imaging Backhaul

    ● Machine Vision

  • Wired Communications

    ● PON Access

    ● Optical Transport Network

  • Wireless Communications

    ● Radio

    ● Basebandn


Key Features

  • System-on-Module

    ● AMD/Xilinx Kintex Ultrascale+™:
    ◆ 16nm FinFET FPGA fabric
    ◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
    ◆ More than 2x faster system-level performance per watt compared to Kintex 7 FPGAs
    ● Pluggable module with 4 x Samtec board-to-board connectors
    ● 10 GByte (80-bit) DDR4 SDRAM
    ● 2 x 64 MB QSPI Flash

  • Base Board

    ● 2 x FMC HPC (FMC1 58 pairs LVDS IOs + 8 pairs GTH / FMC2 34 pairs LVDS IOs + 8 pairs GTH)
    ● 1 x PCIe® Gen3 ×16
    ● 2 x QSFP28 (100Gbps)
    ● 1 x Gigabit Ethernet
    ● 1 x UART(USB to UART)
    ● 2 x 4 lane MIPI
    ● 1 x MicroSD
    ● 1 x 512 Byte EEPROM 24LC04
    ● 1 x Temperature sensor LM75
    ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED)  KEY (4 x KEY)
    ● 12V single supply
    ● Dimensions: 226 x 111 mm form factor

Product Information

  • Specifications
  • What's Inside
Board Features

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU15P-2FFVE1517I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.


* The AXUKU15 development board consists of a ACKU15 SoM and base board. If you want to purchase ACKU15 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale+™ XCKU15P FPGA development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU15P device surface.

System-on-Module1Base Board1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1PCle Fence1
Heatsink Kit (preinstalled)1

Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAMQSPI FlashGTHGTYUSD Price
AXKU15XCKU15P-2FFVE1517I10 GB2 x 64 MB32245391
AXKU15-D√XCKU15P-2FFVE1517I10 GB2 x 64 MB32244642
AXKU15S√XCKU15P-2FFVE1517I5 GB2 x 64 MB32244493


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AXKU15 V1.0 User Manual

    2026-05-08
    Download

  • AXKU15 V2.0 User Manual

    2025-09-28
    Download
