Product Description

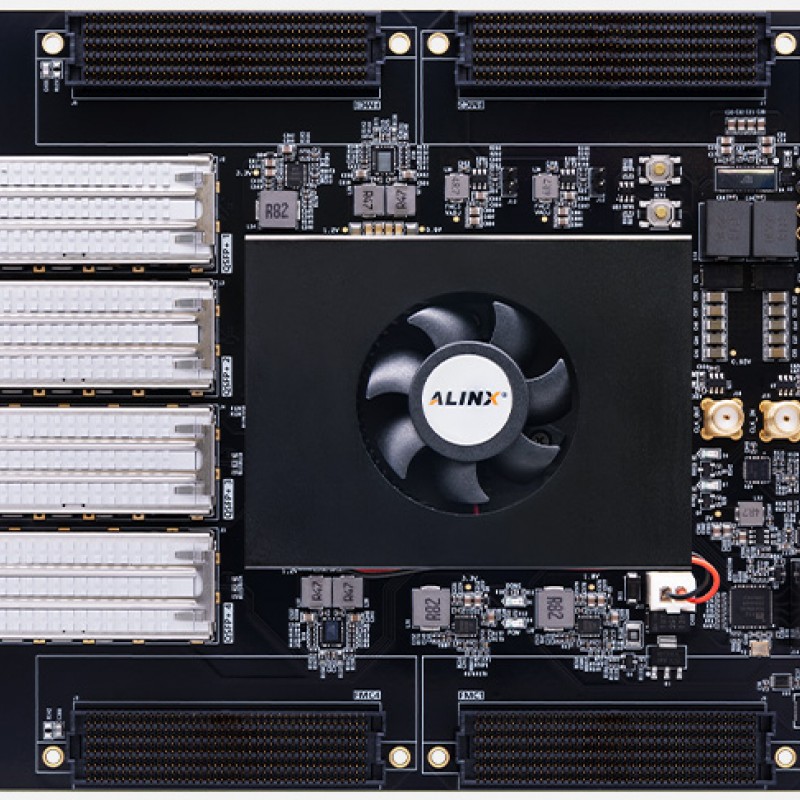

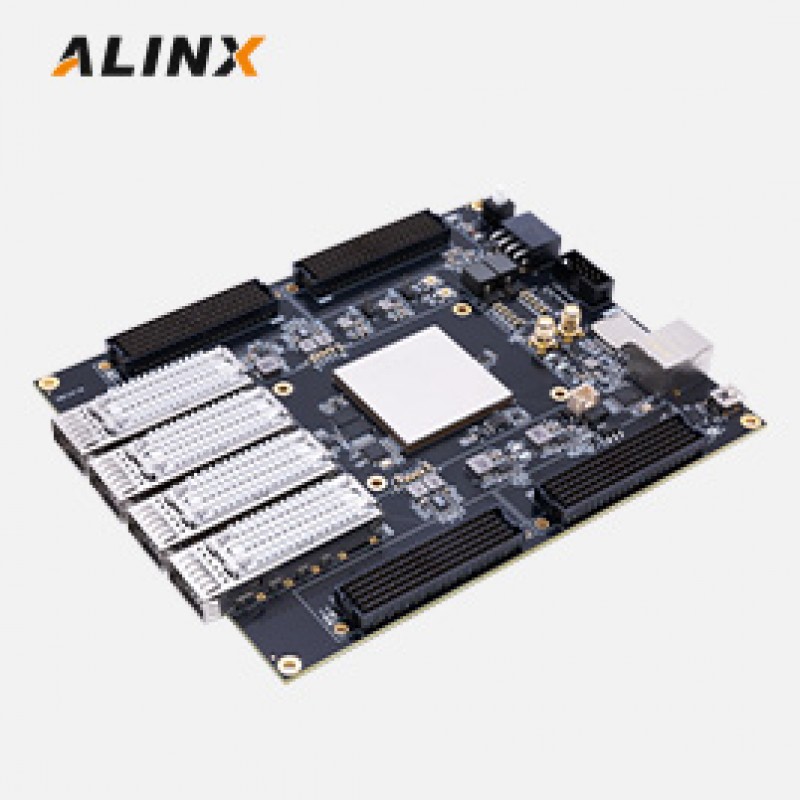

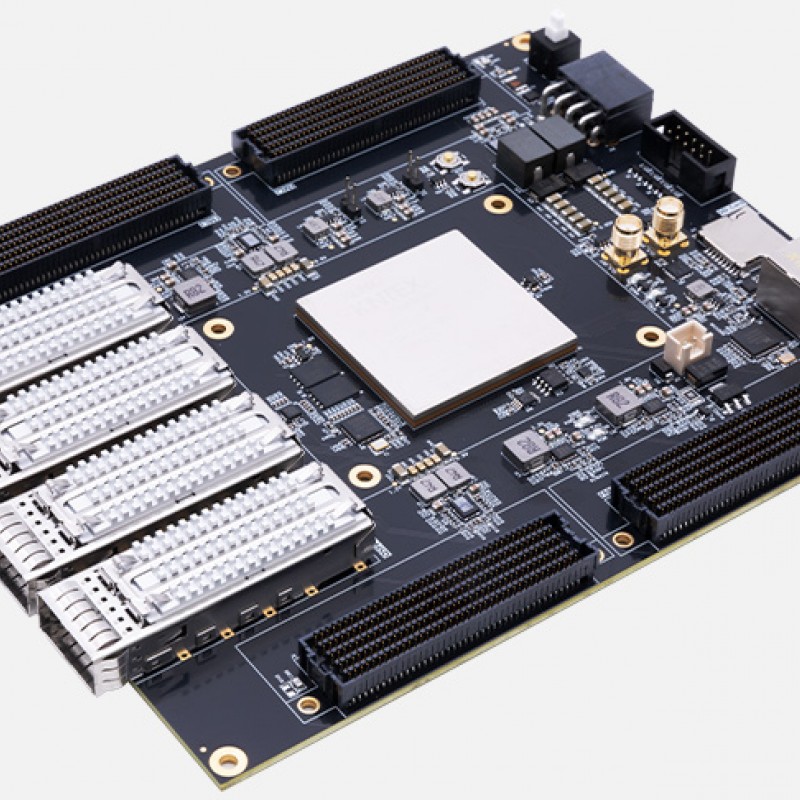

The AXKU115 FPGA development board, equipped with the AMD/Xilinx Kintex UltraScale™ XCKU115 device, delivers standout performance featuring dual 512Mbit QSPI Flash, four 40G QSFP+ optical interfaces, four FMC HPC expansion connectors, and Gigabit Ethernet. It supports a wide range of FMC modules, including high-speed data acquisition, video interfaces, and custom I/O applications.
Applications
Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Transmission
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Wireless Radio
● Baseband
Key Features
- ● AMD/Xilinx Kintex Ultrascale™ :
◆ 1,451K Logic Cells
◆ 5,520 DSP Slices
◆ 64 x GTH Transceivers
● 2 x 64 MB QSPI Flash
● 4x FMC HPC
● 4 x 40G QSFP+
● 1 x Gigabit Ethernet
● 1 x USB-UART - ● 1 x MicroSD
● 2 x SMA
● 2 x JTAG
● 1 x EEPROM 24LC04
● 1 x Temperature sensor LM75A
● 4 x LED (1 x PWR + 1 x DONE + 2 x User)
● 2 x KEY
● 12V single supply
● Dimensions: 177 x 143 mm form factor
- Specifications
- What's Inside

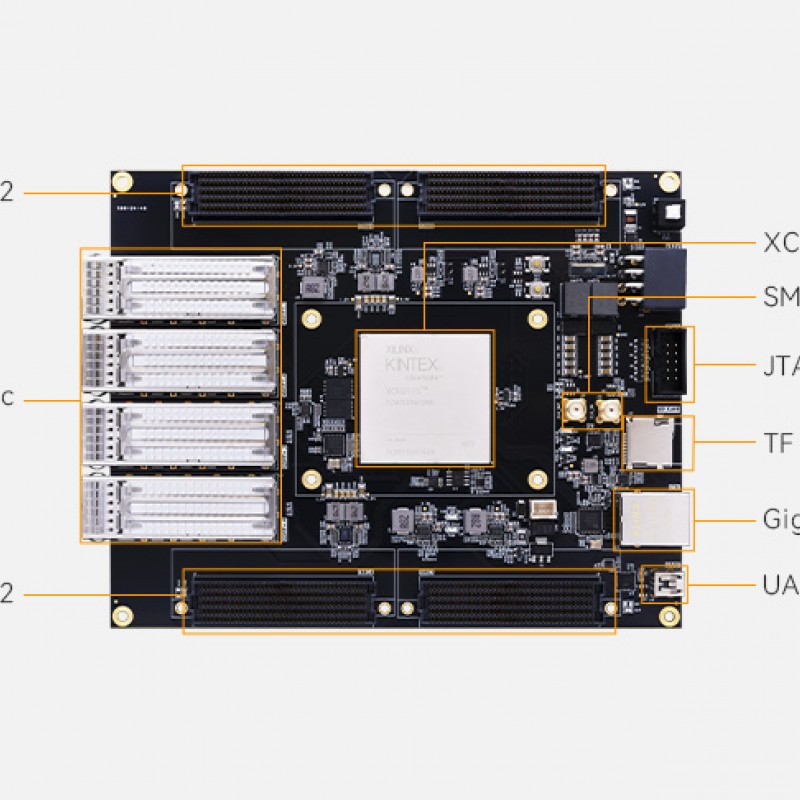

Board Features

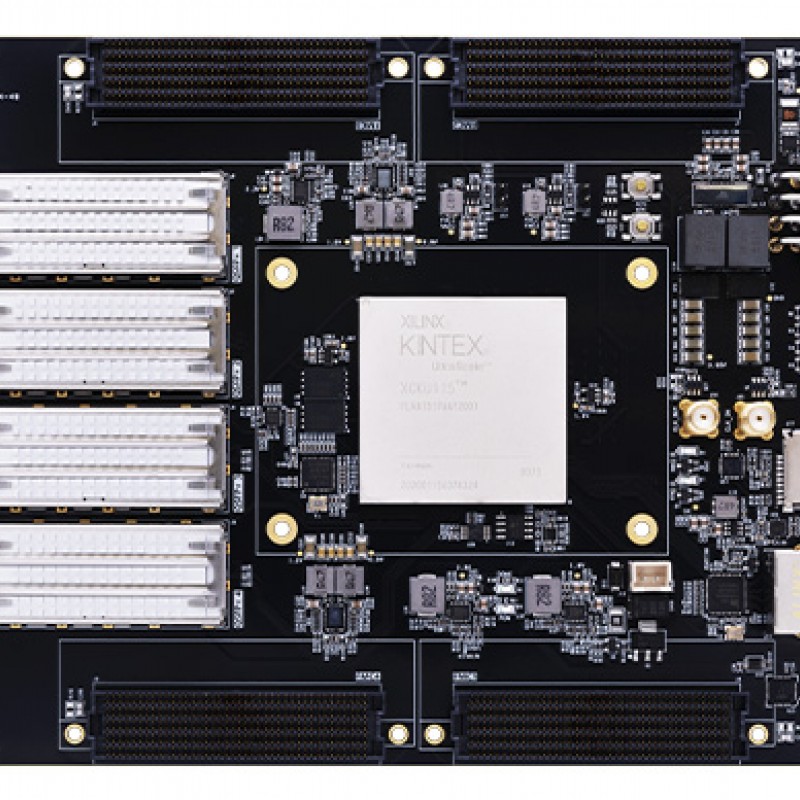

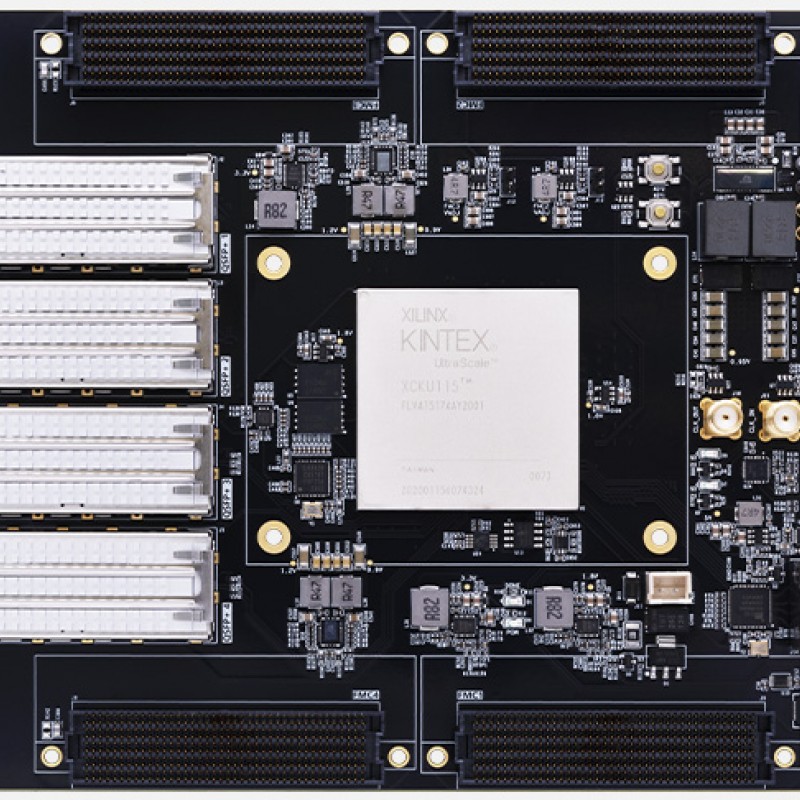

Featuring the AMD/Xilinx Kintex Ultrascale™ XCKU115-2FLVA1517I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale™ based application.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Kintex Ultrascale™ XCKU115 FPGA development board and Some accessories
| development board | 1 | USB Downloader Cable / set | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | Heatsink Kit (preinstalled) | 1 |
| 12V Power Adapter | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | QSPI Flash | GTH | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXKU115 | √ | XCKU115-2FLVA1517I | 128 MB | 64 | 5242 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
No documentation downloads are currently listed for this product on the manufacturer's website. Please contact our support for the user manual, schematics, and reference designs.
