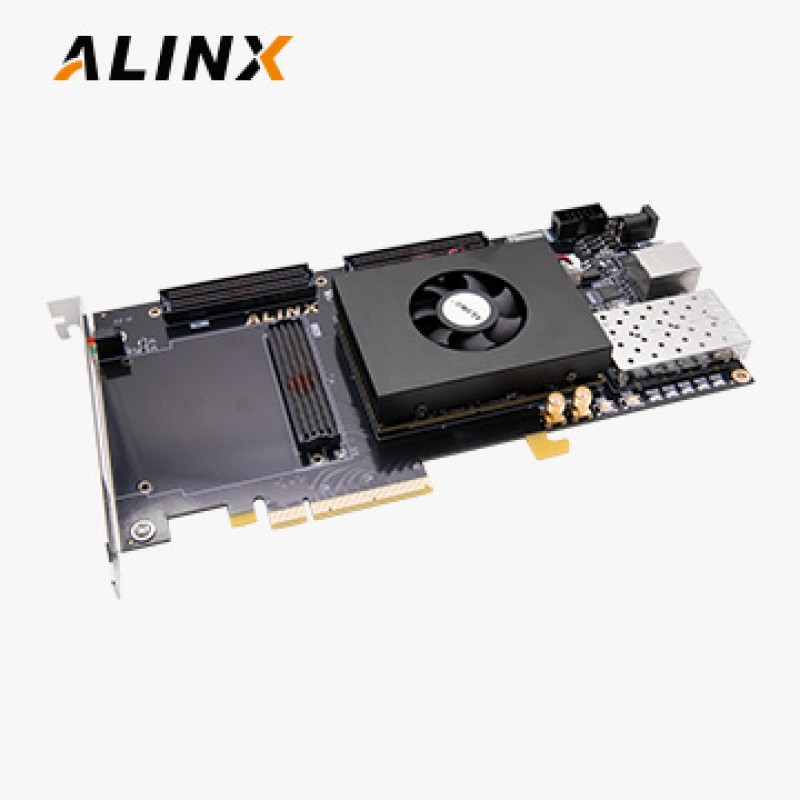

AXKU062 FPGA Dev Board & Kit with AMD Kintex US XCKU060

AXKU062 FPGA Dev Board & Kit with AMD Kintex US XCKU060
AXKU062 FPGA Dev Board & Kit with AMD Kintex US XCKU060
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AXKU062 V2.0
  • SKU: AXKU062 V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$1,497.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AXKU042/AXKU062/AXKU095 FPGA development board equipped with the AMD/Xilinx Kintex UltraScale™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, SFP+, FMC HPC, FMC LPC, Gigabit Ethernet.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, SFP+).

Applications

  • Data Center

    ● Network Acceleration

    ● Storage Acceleration

  • Industrial, Science, Medical

    ● Medical Imaging Backhaul

    ● Machine Vision

  • Wired Communications

    ● PON Access

    ● Optical Transport Network

  • Wireless Communications

    ● Radio

    ● Baseband


Key Features

  • System-on-Module

    ● AMD/Xilinx Kintex Ultrascale™:
    ◆ Up to 1.5M system logic units with Gen 2 3D ICs
    ◆ 8.2 TeraMAC DSP Compute Performance
    ◆ Enhanced system logic unit packaging reduces dynamic power consumption
    ● Pluggable module with 6 x Panasonic board-to-board connectors
    ● 4 GByte (64-bit) DDR4 SDRAM
    ● 2 x 16 MB QSPI Flash

  • Base Board

    ● 2 x FMC LPC (36 pairs lvds ios) + FMC HPC (58 pairs lvds ios + 8 pairs GTH)
    ● 1 x PCIe® Gen3 x 8
    ● 2 x SFP+ (per line 12.5Gbps)
    ● 1 x Gigabit Ethernet
    ● 1 x UART (USB to UART)
    ● 1 x MicroSD
    ● 1 x 512 Byte EEPROM 24LC04
    ● 1 x Temperature sensor LM75A
    ● LED (1 x PWR + 4 x LED) + KEY (1 x reset + 2 x KEY)
    ● 12V single supply
    ● Dimensions: 210 x 106 mm form factor

Product Information

  • Specifications
  • What's Inside
Board Features

Featuring the AMD/Xilinx Kintex Ultrascale™ XCKU060-2FFVA1156I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
 The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale™ based application.


* The AXKU062 development board consists of a ACKU060 SoM and base board. If you want to purchase ACKU060 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale™ XCKU060 FPGA development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU060 device surface.

System-on-Module1Base Board1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1PCle Fence1
Heatsink Kit (preinstalled)1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAMQSPI FlashGTHUSD Price
AXKU042√XCKU040-2FFVA1156I4 GB32 MB201168
AXKU062√XCKU060-2FFVA1156I4 GB32 MB201497
AXKU095√XCKU095-1FFVA1156I4 GB32 MB202546


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AXKU062 V2.0 User Manual

    2026-05-08
    Download

  • AXKU062 V3.0 User Manual

    2026-05-08
    Download
