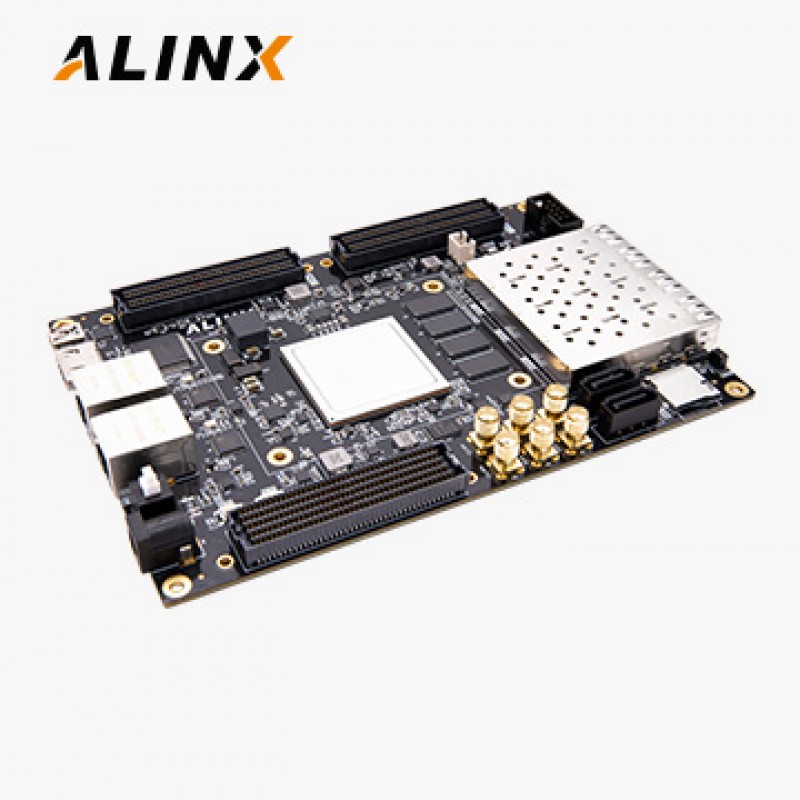

AXKU040 FPGA Dev Board & Kit with AMD Kintex US XCKU040

AXKU040 FPGA Dev Board & Kit with AMD Kintex US XCKU040
AXKU040 FPGA Dev Board & Kit with AMD Kintex US XCKU040
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AXKU040 V2.0
  • SKU: AXKU040 V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$1,153.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AXKU040  FPGA development board equipped with the AMD/Xilinx Kintex UltraScale™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, SFP+, FMC HPC, FMC LPC, Gigabit Ethernet.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).

Applications

  • Data Center

    ● Network Acceleration

    ● Storage Acceleration

  • Industrial, Science, Medical

    ● Medical Imaging Backhaul

    ● Machine Vision

  • Wired Communications

    ● PON Access

    ● Optical Transport Network

  • Wireless Communications

    ● Radio

    ● Baseband


Key Features

  • ● AMD/Xilinx Kintex Ultrascale™:
    ◆ Up to 1.5M system logic units with Gen 2 3D ICs
    ◆ 8.2 TeraMAC DSP Compute Performance
    ◆ Enhanced system logic unit packaging reduces dynamic power consumption    ● 4 GByte (64-bit) DDR4 SDRAM
    ● 2 x 16 MB QSPI Flash
    ● 2 x FMC LPC (33 pairs lvds ios + 1 pairs GTH) + FMC HPC (57 pairs lvds ios + 8 pairs GTH)
    ● 4 x SFP+ (per line 12.5Gbps)
  • ● 1 x HDMI out
    ● 2 x Gigabit Ethernet
    ● 1 x UART (USB to UART)
    ● 1 x MicroSD
    ● 1 x Temperature sensor LM75A
    ● LED (1 x PWR + 1 x DONE + 4 x LED) + KEY (1 x reset + 2 x KEY)
    ● 12V single supply
    ● Dimensions: 165 x 114 mm form factor

Product Information

  • Specifications
  • What's Inside
Board Features

Featuring the AMD/Xilinx Kintex Ultrascale™ XCKU040-2FFVA1156I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale™ based application.


What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale™ XCKU040 FPGA development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU040 device surface.

System-on-Module1Base Board1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1Acrylic board1
Heatsink Kit (preinstalled)1

Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAMQSPI FlashGTHUSD Price
AXKU040√XCKU040-2FFVA1156I4 GB2 x 32 MB201153


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AXKU040_User Manual_V2.0

    2026-07-17
    Download

  • AXKU040 User Manual

    2023-04-26
    Download
