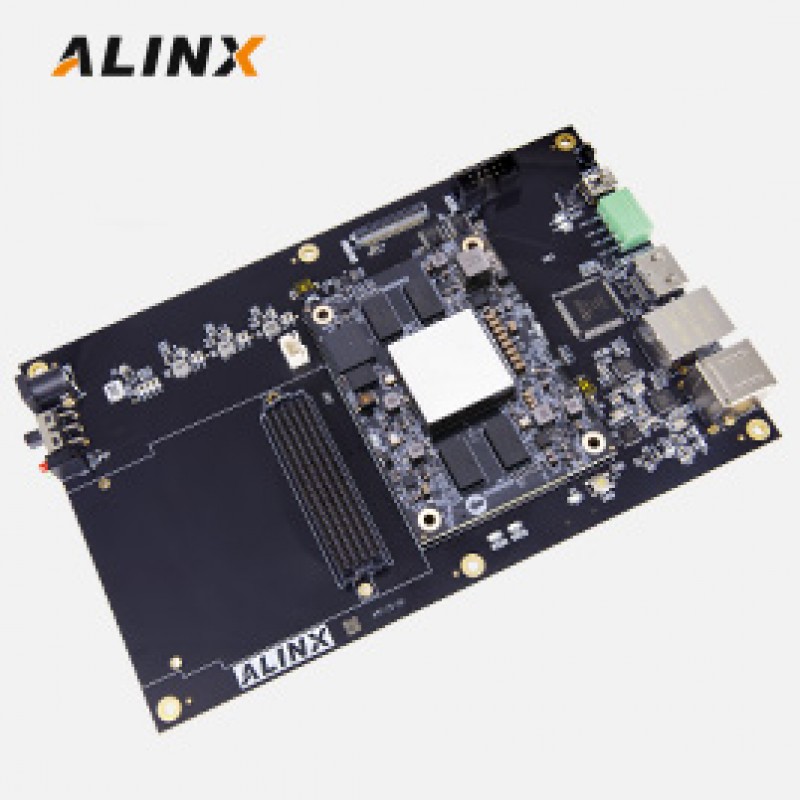

AXK402 FPGA Dev Board & Kit with Pango Kosmo-2 PG2K400

AXK402 FPGA Dev Board & Kit with Pango Kosmo-2 PG2K400
Free
AXK402 FPGA Dev Board & Kit with Pango Kosmo-2 PG2K400
  • Stock: In Stock
  • Model: AXK402 V1.0
  • SKU: AXK402 V1.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$0.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

AXK402 is a professional Kosmo2 FPGA development platform based on the PG2K400 SoC, integrating a dual-core ARM Cortex-A53 processor and FPGA logic on a single chip, with a core board for processing and memory, and an expansion board providing diverse interfaces like FMC, Gigabit Ethernet, USB, HDMI, CAN, and LVDS for high-speed data exchange and industrial applications.


Applications

  •  Automotive

    ● Road Sign Recognition

    ● ADAS

  • Communication Network

    ● Ethernet Backhaul

    ● Small Cell Baseband

    ● Network Switch

    ● Software Defined Radio

  • Industrial

    ● Motor control

    ● Industrial Control

    ● Industrial IoT

    ● Instrumentation

    ● Smart Grid

  • Video and Image Processing

    ● Professional Cameras

    ● Computer Vision

    ● Machine Vision

    ● Video Surveillance

  • Medical

    ● Endoscopy

    ● Ultrasound, CT, MRI



Key Features

  • System-on-Module

    ● PANGOMICRO Kosmo-2 SOPC:
    ◆ ARM® dual-core Cortex™-A53 up to 1 GHz● Pluggable module with 4 x board-to-board connectors
    ● 1 GByte (32-bit) DDR3 SDRAM on PU
    ● 1 GByte (32-bit) DDR3 SDRAM on PA
    ● 32 MB OSPI Flash
    ● 16 MB QSPI Flash
    ● 8 GB eMMC Flash

  • Base Board

    ● 1 x FMC HPC
    ● 1 x Gigabit Ethernet
    ● 1 x HDMI
    ● 2 x CAN
    ● 2 x USB2.0 (Host)
    ● 1 x UART to USB
    ● 1 x JTAG
    ● 1 x LVDS (40PIN FPC)
    ● 1 x Micro SD
    ● 7 x LED (2 x core board+ 5 x Base Board)
    ● 2 x KEY (1 x RST + 1 x PA User)
    ● 12V single supply
    ● Dimensions: 190 x 120 mm form factor

Product Information

  • Specifications
  • What's Inside
Development Board Features

Featuring the PANGOMICRO Kosmo-2 SOPC PG2K400-6IFFBG67 Adaptive SOPC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGOMICRO Kosmo-2 SOPC based application.


* The AXK401 development board consists of a K400 SoM and base board. If you want to purchase K400 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX Kosmo-2 SOPC PG2K400 development board and Some Accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoPC modules – it is low-profile and covers the whole PG2K400 device surface.

Base Board1System-on-Module1
Mini USB Cable1USB Downloader Cable / set1
12V Power Adapter1Heatsink Kit (preinstalled)1
TF Card1Card Reader1

Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3 SDRAMQSPI FlashOSPI FlasheMMC FLAShHSSTUSD Price
AXK402                      √PG2K400-6IFFBG6762 GB16 MB32 MB8GB8809


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations
