Product Description

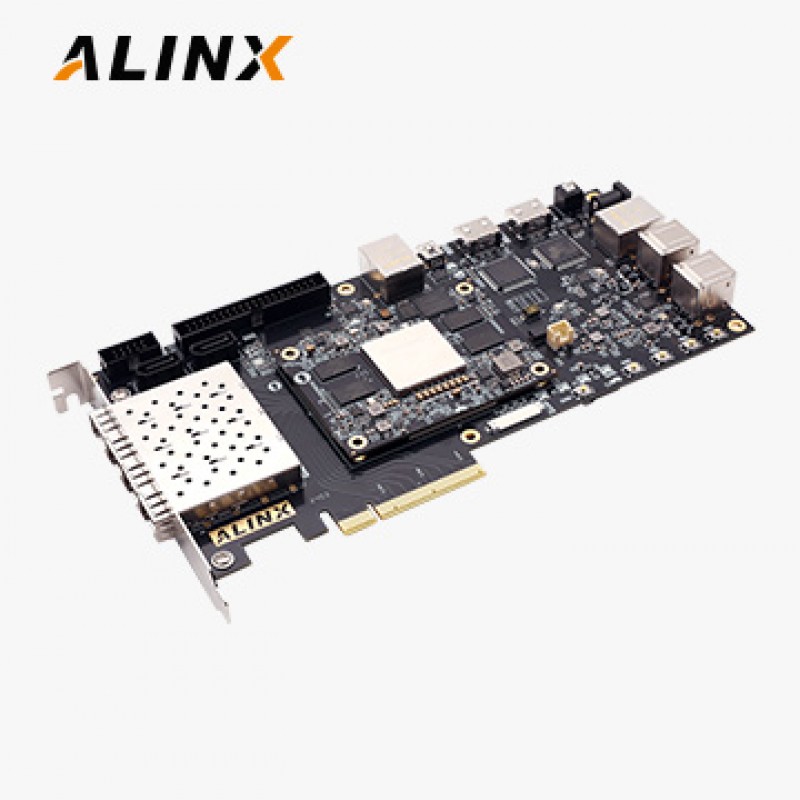

The AXK400 development board equipped with the PANGOMICRO Kosmo-2 series PG2K400 device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, OSPI Flash, PCIe, SFP+, HDMI.
Applications
Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI
Key Features
System-on-Module
● PANGOMICRO Kosmo-2 SOPC:
◆ ARM® dual-core Cortex™-A53 up to 1 GHz● Pluggable module with 4 x board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM on PU
● 1 GByte (32-bit) DDR3 SDRAM on PA
● 32 MB OSPI Flash
● 16 MB QSPI Flash
● 8 GB eMMC FlashBase Board
● 2 x Gigabit Ethernet (1 x PA + 1 x PU)
● 1 x USB to UART
● 4 x USB2.0 (Host)
● 2 x HDMI (1 x HDMI in + 1 x HDMI out)
● 4 x SFP+ (per line 12.5Gbps)
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x PCIe® Gen3 ×8
● 1 x Micro SD
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x PL LED)
● KEY (1 x RST + 4 x PL KEY)
● 12V single supply
● Dimensions: 215 x 107 mm form factor
- Specifications
- What's Inside
Development Board Features
Featuring the PANGOMICRO Kosmo-2 SOPC PG2K400-6IFFBG67 Adaptive SOPC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGOMICRO Kosmo-2 SOPC based application.
* The AXK400 development board consists of a K400 SoM and base board. If you want to purchase K400 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX Kosmo-2 SOPC PG2K400 development board and Some Accessories
The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoPC modules – it is low-profile and covers the whole PG2K400 device surface.
| Base Board | 1 | System-on-Module | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | PCle Fence | 1 |
| TF Card | 1 | Card Reader | 1 |
| Heatsink Kit (preinstalled) | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 SDRAM | QSPI Flash | OSPI Flash | eMMC FLASh | HSST | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXK400 | √ | PG2K400-6IFFBG676 | 2 GB | 16 MB | 32 MB | 8GB | 8 | 749 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
