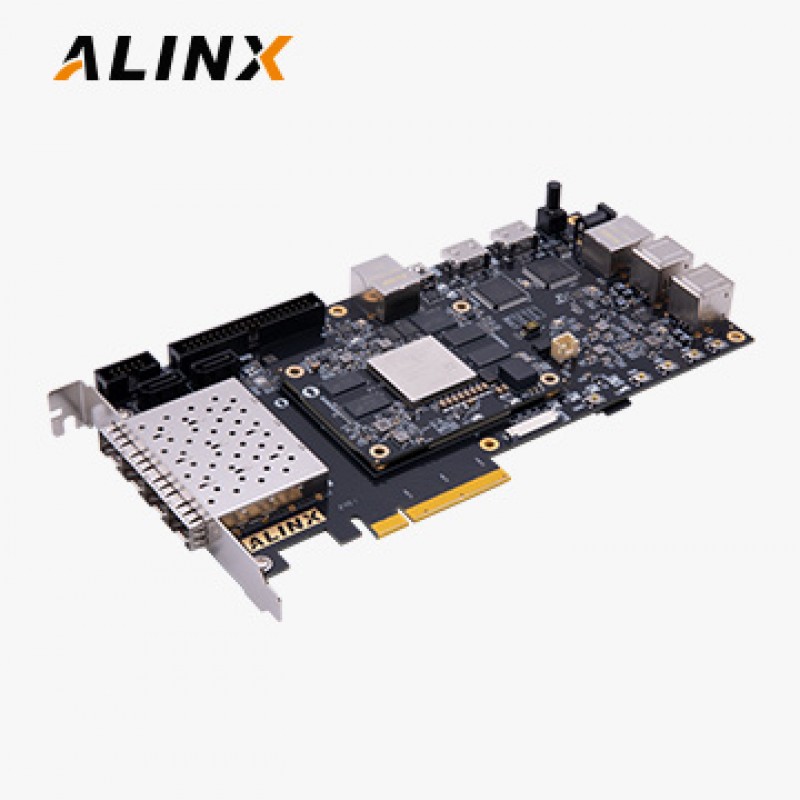

The AX7Z035B/AX7Z045/AX7Z100B SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, SFP+, HDMI.
Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).
Applications
Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI
Key Features
System-on-Module
● AMD/Xilinx Zynq™ 7000 SoC: ◆ ARM® dual-core Cortex™-A9 up to 800 MHz ◆ Xilinx Kintex 7 28nm FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors ● 1 GByte (32-bit) DDR3 SDRAM on PS ● 1 GByte (32-bit) DDR3 SDRAM on PL ● 64 MB QSPI Flash ● 8 GB eMMC Flash
Base Board
● 2 x Gigabit Ethernet (1 x PS + 1 x PL) ● 2 x HDMI (1 x HDMI in + 1 x HDMI out) ● 4 x SFP+ (per line 10Gbps) ● 4 x USB2.0 (Host) ● 1 x USB to UART on PS ● 1 x JTAG ● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.) ● 1 x PCIe® Gen2 ×8 (PL)(AX7Z035B is 1 x PCIe® Gen2 ×4) ● 1 x Micro SD ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x PL LED) ● KEY (1 x RST + 4 x PL KEY) ● 12V single supply ● Dimensions: 215 x 107 mm form factor
Product Information
Specifications
What's Inside
Development Board Features
Featuring the AMD/Xilinx's Zynq™ 7000 SoC XC7Z035-2FFG676I Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box. The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.
* The AX7Z035B development board consists of a AC7Z035B SoM and base board. If you want to purchase AC7Z035B SoM separately. Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z035 development board and Some accessories
The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
System-on-Module
1
Base Board
1
Heatsink Kit (preinstalled)
1
USB Downloader Cable / set
1
Mini USB Cable
1
PCle Fence
1
12V Power Adapter
1
Card Reader
1
TF Card
1
Product Selection Matrix
Product Matrix
Product Model
Preferred Model
Zynq 7000 SoC
DDR3 SDRAM (PS)
DDR3 SDRAM (PL)
QSPI Flash
eMMC
USD Price
AX7Z100B
√
XC7Z100-2FFG900I
1 GB
1 GB
64 MB
8GB
1243
AX7Z045
√
XC7Z045-2FFG900I
1 GB
1 GB
64 MB
8GB
988
AX7Z035B
√
XC7Z035-2FFG676I
1 GB
1 GB
64 MB
8GB
868
AX7Z030
XC7Z030-2FFG676I
1 GB
1 GB
64 MB
8GB
TBD
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
