Product Description

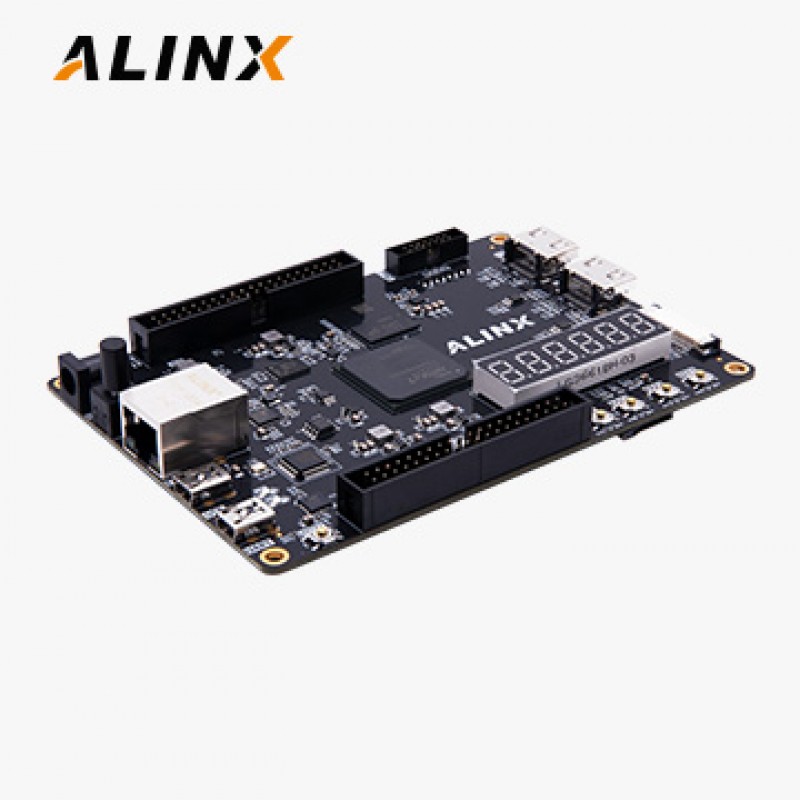

The AX7035B FPGA development board equipped with the AMD/Xilinx Artix 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, HDMI.
Provide video applications (HDMI).
Applications
● communication
● Image and video processing
● Data analysis
● medical care
● Industrial control
● Network Information Security
Key Features
- ● AMD/Xilinx Artix 7:
◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
◆ The 28nm node achieves an excellent cost/performance/power balance
● 256MByte (32-bit) DDR3 SDRAM
● 16 MB QSPI Flash
● 1 x Gigabit Ethernet
● 2 x HDMI(1 x HDMI in + 1 x HDMI out)
● 1 x USB2.0
● 1 x MicroSD - ● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY (2 x KEY)
● 1 x Six-in-one digital tube
● 1 x UART(USB to UART)
● 5 V single supply
● Dimensions: 130 x 90 mm form factor
- Specifications
- What's Inside
Board Features
Featuring the AMD/Xilinx Artix 7 XC7A35T-2FGG484I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Artix 7 based application.
What's Inside the Box
ALINX AMD Xilinx Artix 7 XC7A35T FPGA development board and Some accessories
| Development Board | 1 | USB Downloader Cable / set | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | Acrylic board | 1 |
| 5V Power Adapter | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 SDRAM | QSPI Flash | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AX7035B | √ | XC7A35T-2FGG484I | 256MB | 16 MB | 150 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
