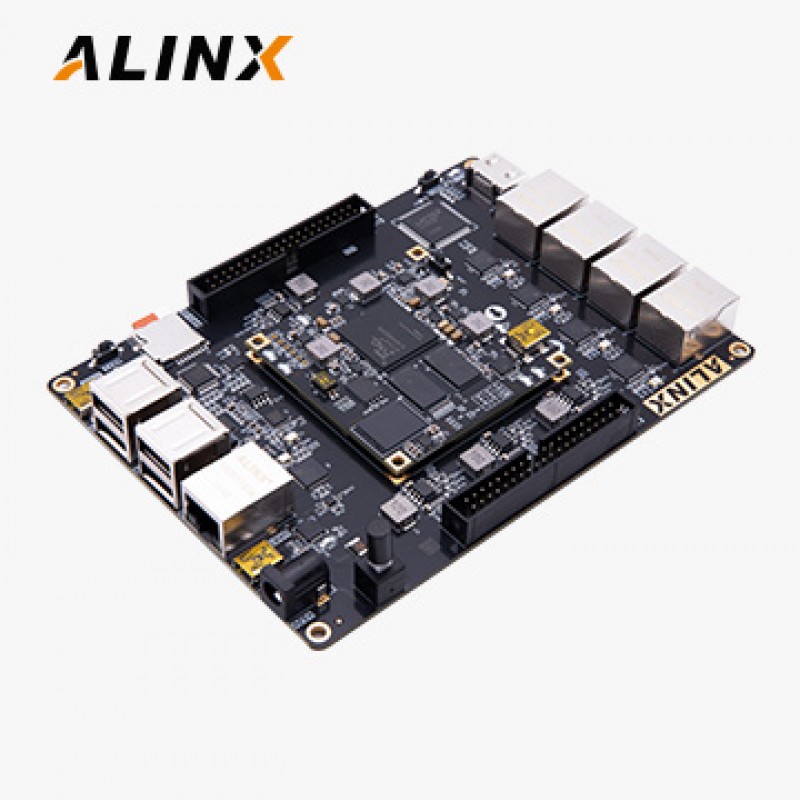

The AX7021 SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series XC7Z020 device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, Gigabit Ethernet, HDMI Out.
Applications
Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI
Key Features
System-on-Module
● AMD/Xilinx Zynq™ 7000 SoC: ◆ ARM® dual-core Cortex™-A9 up to 767 MHz ◆ Artix 7 28nm FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors ● 1 GByte (32-bit) DDR3 SDRAM on PS ● 32 MB QSPI Flash ● 8 GB eMMC Flash
Base Board
● 5 x Gigabit Ethernet (1 x PS + 4 x PL) ● 1 x HDMI out ● 1 x USB to UART on PS ● 1 x JTAG ● 4 x USB2.0 (Host) ● 2 x 40-pin expansion port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.) ● 1 x Micro SD ● LED (1 x PWR + 1 x PS LED + 1 x PL LED) ● KEY (1 x PS KEY + 1 x PL KEY) ● 12V single supply ● Dimensions: 150 x 110 mm form factor
Product Information
Specifications
What's Inside
Development Board Features
Featuring the AMD/Xilinx's Zynq™ 7000 SoC XC7Z020-2CLG484I Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box. The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.
* The AX7021B development board consists of a AC7021B SoM and base board. If you want to purchase AC7021B SoM separately. Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z020 development board and Some accessories
System-on-Module
1
Base Board
1
Mini USB Cable
2
Acrylic board
1
12V Power Adapter
1
Card Reader
1
TF Card
1
Product Selection Matrix
Product Matrix
Product Model
Preferred Model
Zynq 7000 SoC
DDR3 SDRAM (PS)
QSPI Flash
eMMC
USD Price
AX7021
√
XC7Z020-2CLG484I
1 GB
32 MB
8GB
419
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
