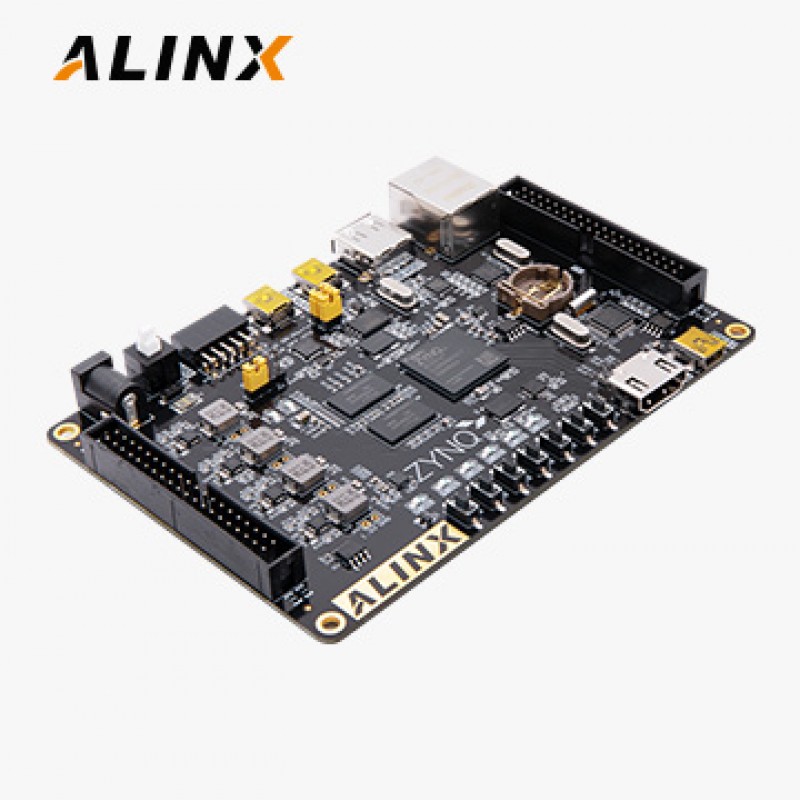

The AX7010 SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, HDMI Output.
Applications
Automotive
● Road Sign Recognition
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI
Key Features
● AMD/Xilinx Zynq™ 7000 SoC: ◆ ARM® dual-core Cortex™-A9 up to 767 MHz(AX7010 is 667MHz) ◆ Artix 7 28nm FPGA fabric● 512 MByte (32-bit) DDR3 SDRAM on PS ● 32 MB QSPI Flash ● 1 x Gigabit Ethernet (1 x PS) ● 1 x HDMI( in or out) ● 1 x USB to UART on PS ● 1 x JTAG ● 1x USB HOST ● 1x USB SLAVE
● 2 x 40-pin expansion port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.) ● 2 x 256Byte EEPROM 24LC04 ● 1 x DS1302(Real-time Clock) ● 1 x Micro SD ● LED (2 x PS LED + 4 x PL LED) ● KEY (2 x PS KEY + 4 x PL KEY) ● 1 x 12 PIN PS PMOD ● 5V single supply ● Dimensions: 130 x 90 mm form factor
Product Information
Specifications
What's Inside
Development Board Features
Featuring the AMD/Xilinx's Zynq™ 7000 SoC XC7Z010-1CLG400I Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box. The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.
What's Inside the Box
ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z010 development board and Some accessories
Development Board
1
TF Card
1
Mini USB Cable
2
Acrylic Plate
1
5V Power Adapter
1
Card Reader
1
Product Selection Matrix
Product Matrix
Product Model
Preferred Model
Zynq 7000 SoC
DDR3 SDRAM (PS)
QSPI Flash
USD Price
AX7010
√
XC7Z010-1CLG400I
512 MB
32 MB
150
AX7020
√
XC7Z020-2CLG400I
1 GB
32 MB
210
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
