Applications

• ● Industrial Networks

• ● Vehicle Networking and Connectivity

• ● High Resolution Video and Graphics

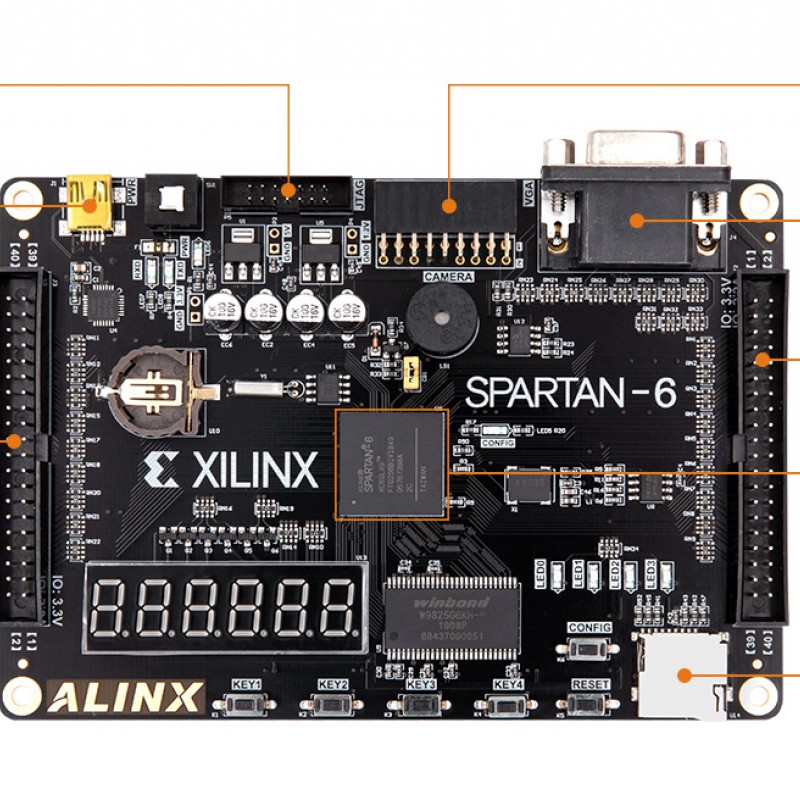

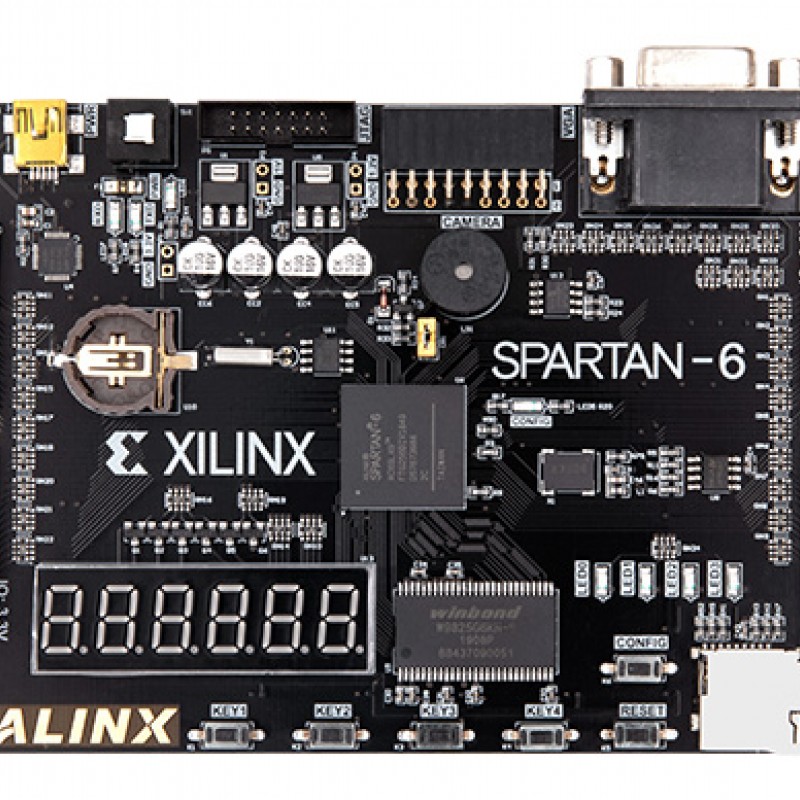

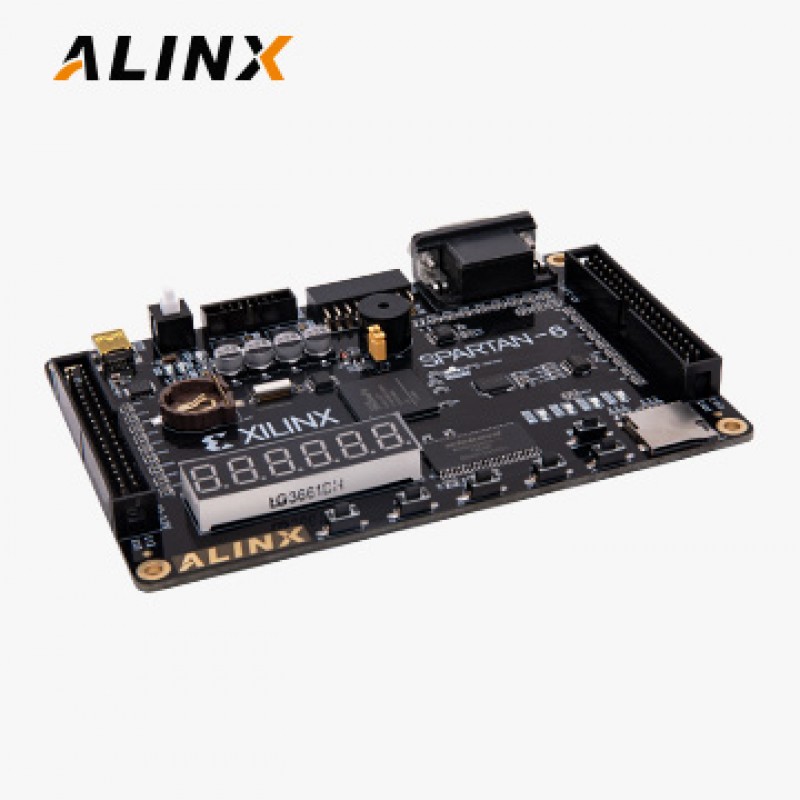

Key Features

• ● AMD/Xilinx Spartan 6:
  ◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
  ◆ The 45nm offers exceptional connectivity features such as high logic-to-pin ratios, small form-factor packaging, MicroBlaze™ soft processor, and a diverse number of supported I/O protocols
  ● 32 MByte (16-bit) SDRAM
  ● 2 MB QSPI Flash
  ● 1 x 512Byte EEPROM 24LC04
  ● 1 x USB to UART
• ● 1 x VGA out
  ● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
  ● 1 x MicroSD
  ● 1 x Cameralink interface
  ● 1 x Six-in-one digital tube
  ● 1 x Buzzer
  ● LED (4 x LED) KEY (6 x KEY)
  ● 5V single supply

Product Information

• Specifications
• What's Inside

Product Selection Matrix

Product Matrix

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

• AX309 User Manual

  2024-02-29
  Download
