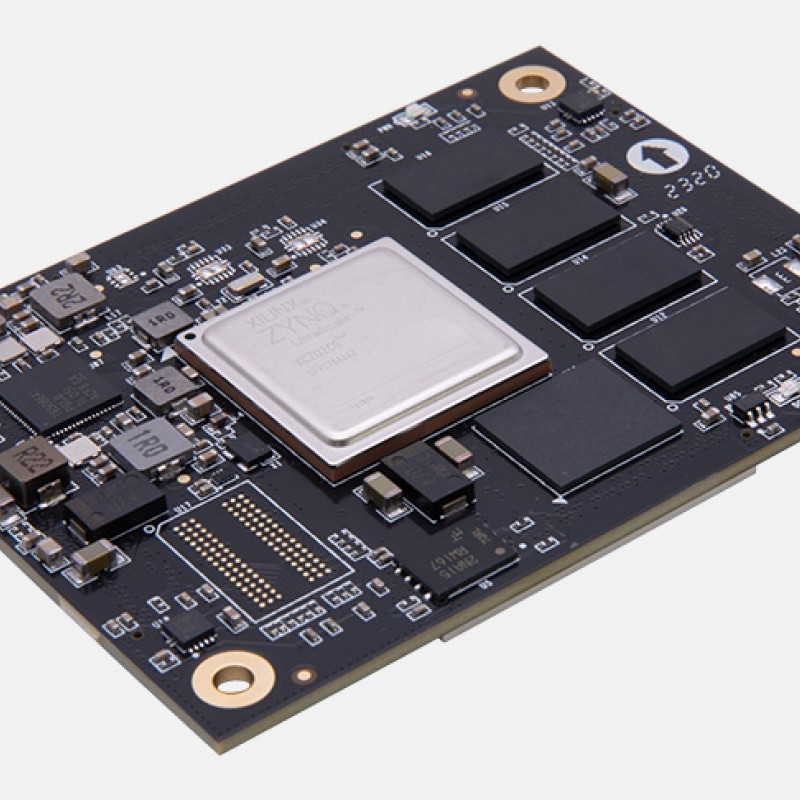

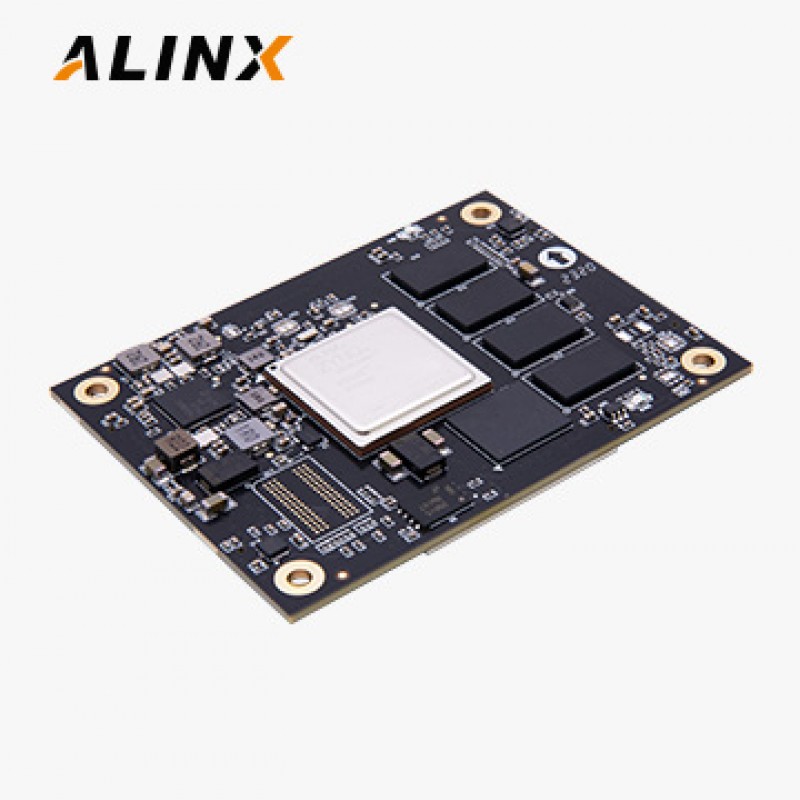

The ACU2CG/3EG/4EV/5EV System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.
Applications
● Artificial Intelligence
● AV Broadcasting
● Industrial Internet of Thing
● Digital Signal Processing
● Drive / Motion Control
● Machine Vision
● Medical Endoscop
● Video and Image Processing
Key Features
● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC: ◆ ARM® Dual-core Cortex™-A53 (quad-core Arm Cortex-A53 for ZU3/4/5) ◆ ARM® dual-core Cortex™-R5F(only for ZU3/4/5) ◆ Mali-400 MP2 GPU (only for ZU3/4/5) ◆ H.264 / H.265 Video Codec (only for ZU4/5) ◆ 16nm FinFET+ FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors ● 2 GByte (64-bit) DDR4 SDRAM on PS (4 GByte for ZU3/4/5) ● 1 GByte (16-bit) DDR4 SDRAM on PL (only for ZU3/4/5) ● 32 MB QSPI Flash ● 8 GB eMMC Flash (32 GB for ZU3/4/5)
● PCIe® Gen3 ×4 (PL, only for ZU4/5), PCIe® Gen2 ×4 (PS) ● Gigabit transceivers ◆ 4 x PS-GTR, up to 6 Gbps ◆ 4 x PL GTH, up to 12.5 Gbps (only for ZU4/5)● User I/Os ◆ 54 PS MIOs ◆ 180 FPGA I/Os (84 HD + 96 HP)● Work temperature range of 0°C~+70°C ● 12V single supply ● Dimensions: 80 x 60 mm form factor
Product Information
Specifications
What's Inside

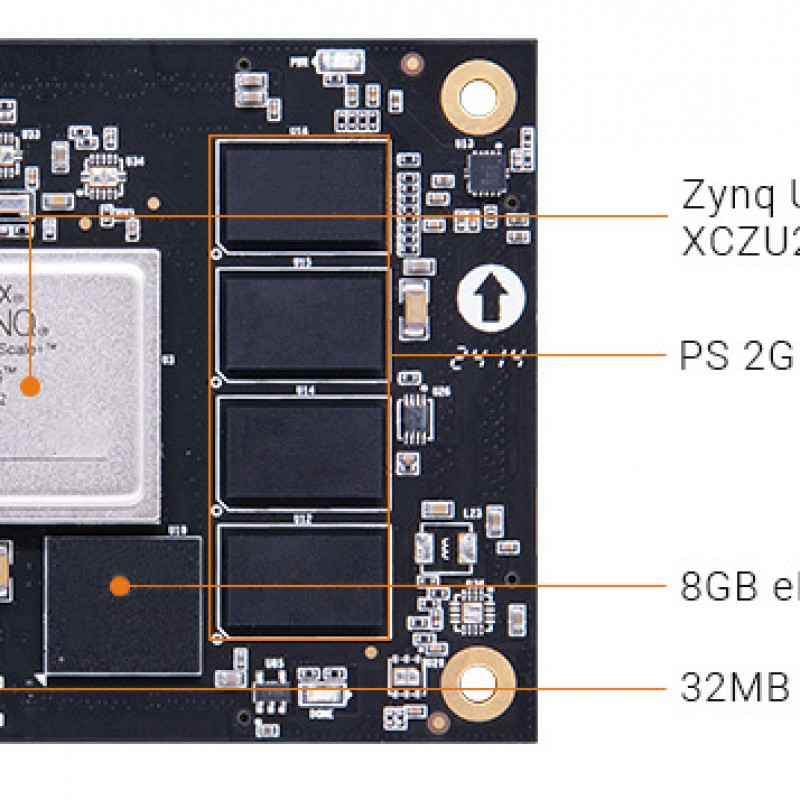

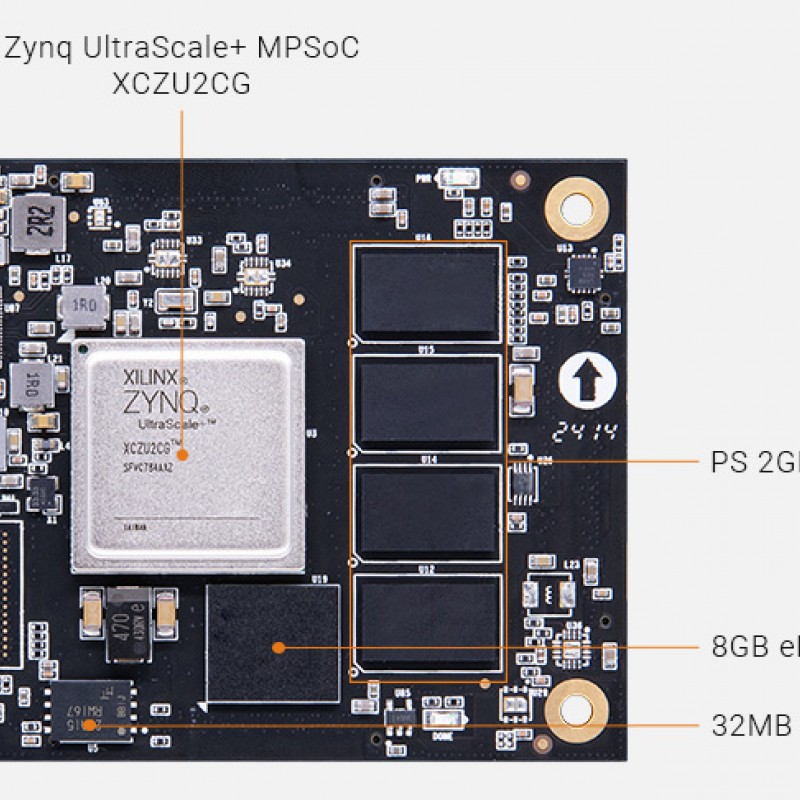

Module Features

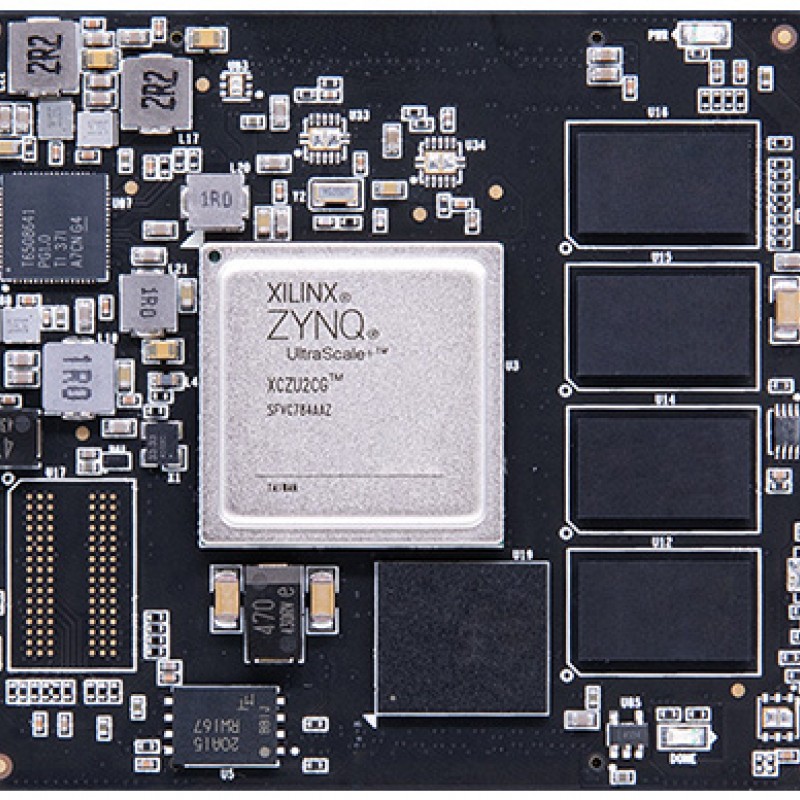

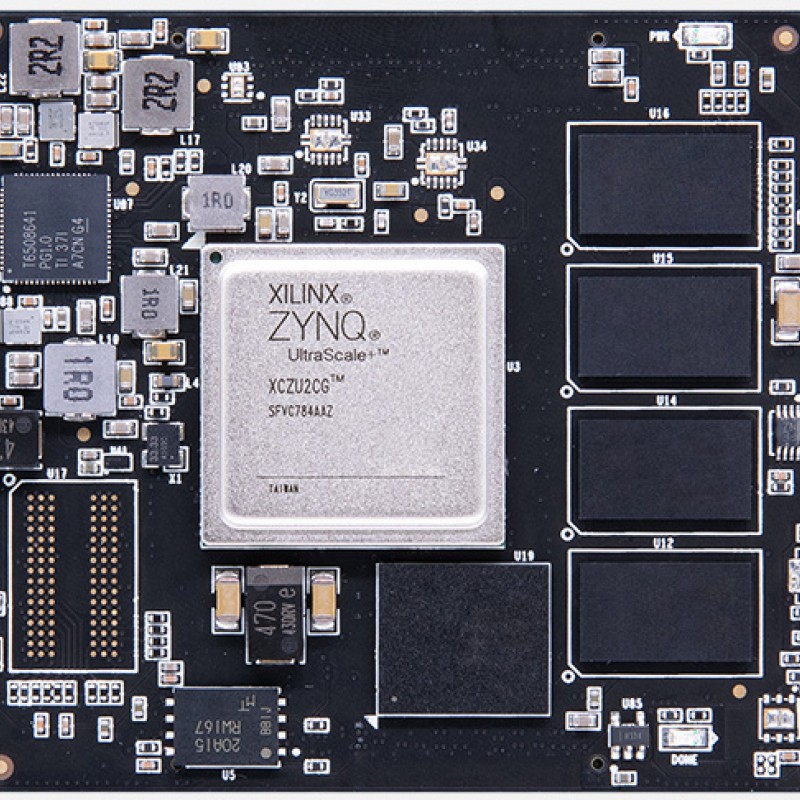

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU2CG-1SFVC784E

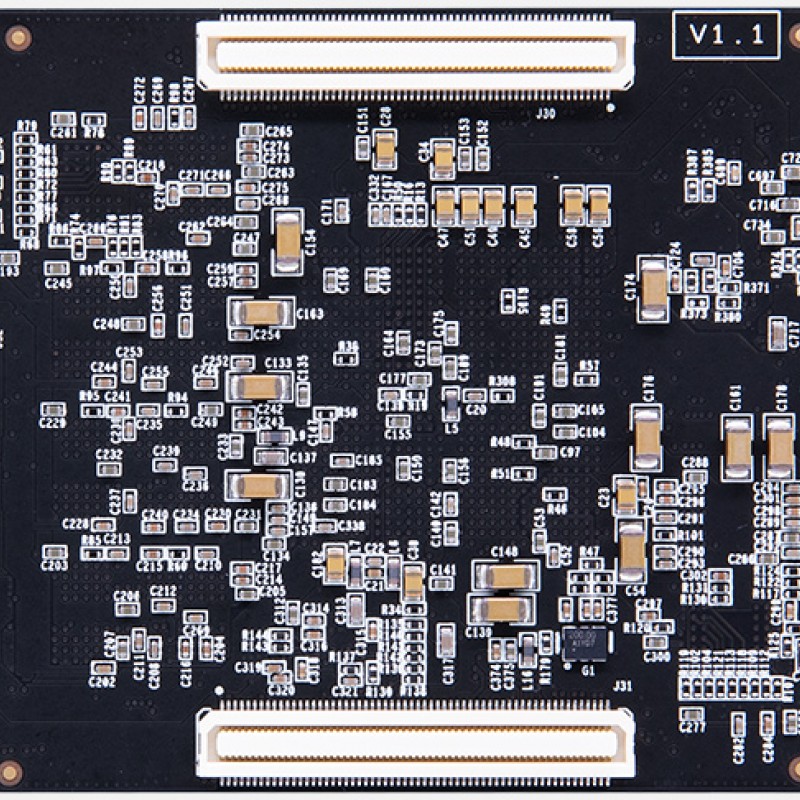

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
* We have Zynq™ UltraScale+™ MPSoC development boards AXU2CGB-E that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
