Name: ACU19EG SoM with AMD Zynq™ US+ MPSoC XCZU19EG
Brand: ALINX
SKU: ACU19EG
Price: 4493.00 USD
Availability: InStock

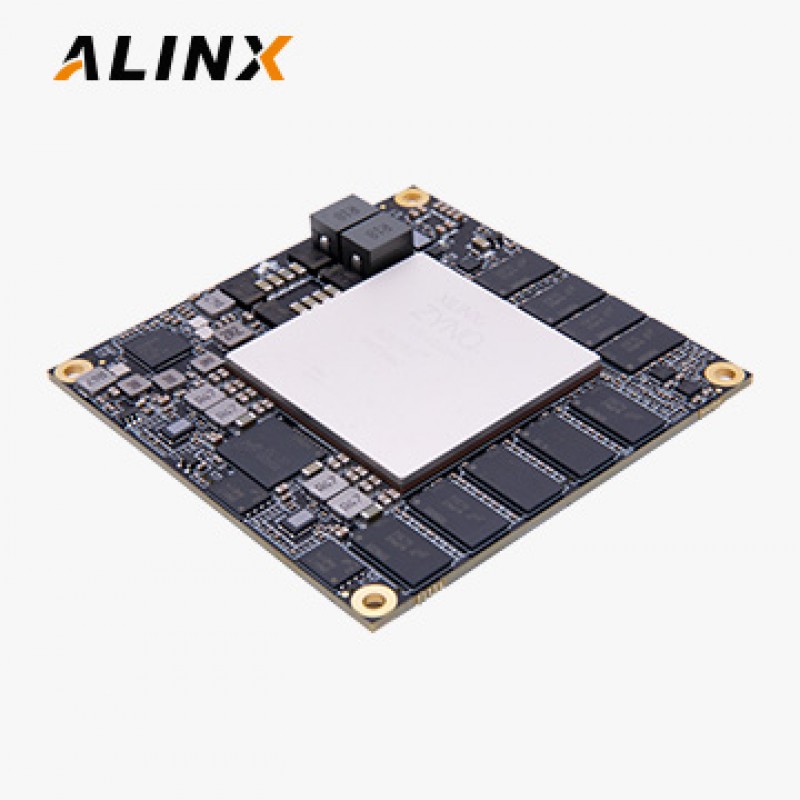

ACU19EG SoM with AMD Zynq™ US+ MPSoC XCZU19EG

ACU19EG SoM with AMD Zynq™ US+ MPSoC XCZU19EG

This product qualifies for free shipping

This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.

Stock: In Stock
Model: ACU19EG
SKU: ACU19EG

ALINX

190 samples sold

Based on 0 reviews. - Write a review

$4,493.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Reviews

Product Description

The ACU19EG System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series XCZU19EG device with fast DDR4 SDRAM, eMMC Flash, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5F up to 533 MHz
◆ Mali-400 MP2 GPU

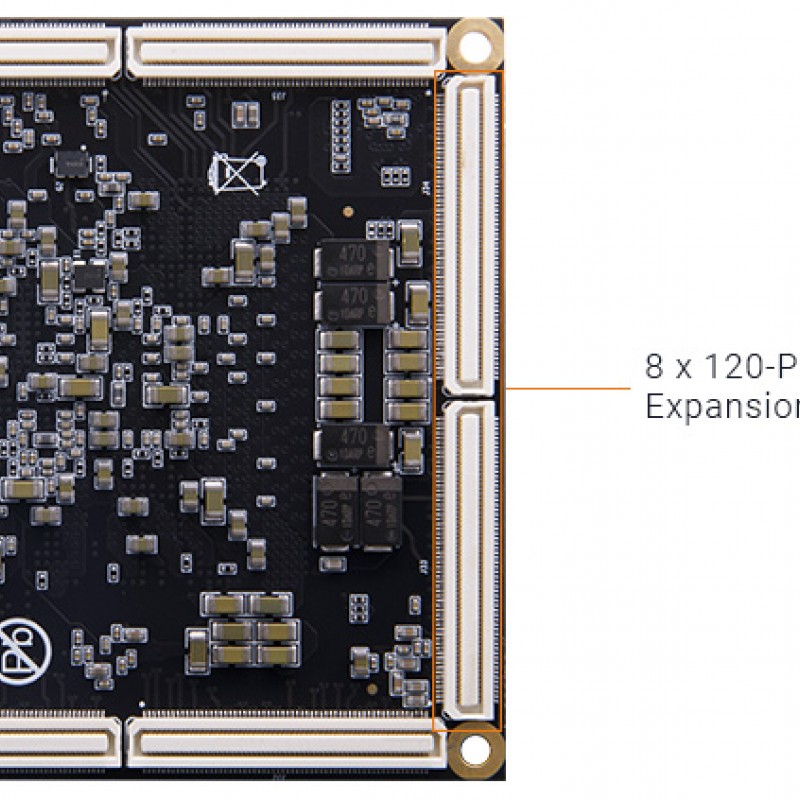

◆ 16nm FinFET+ FPGA fabric● Pluggable module with 8 x Panasonic board-to-board connectors

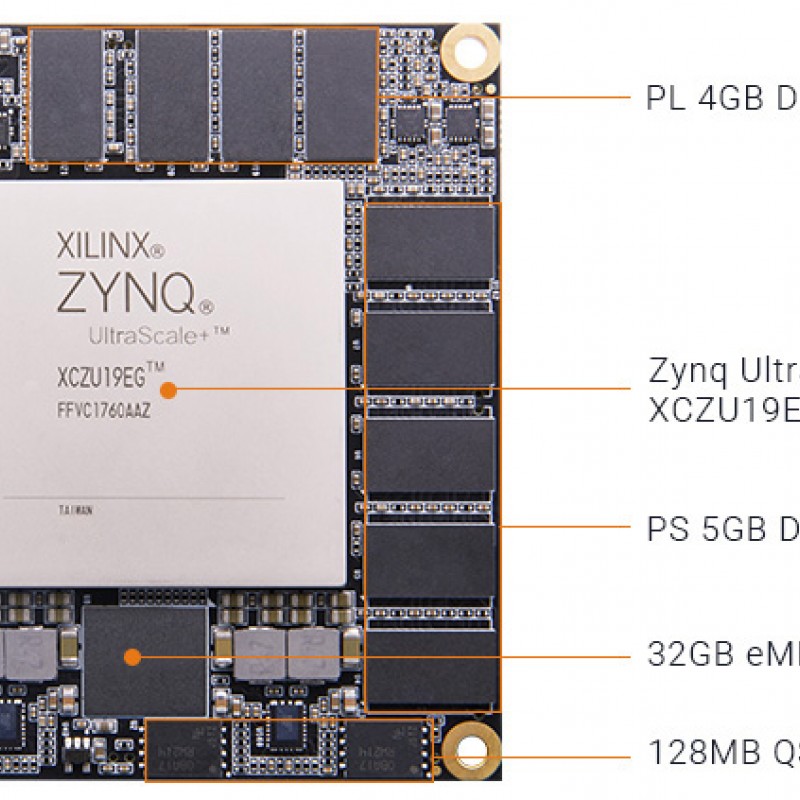

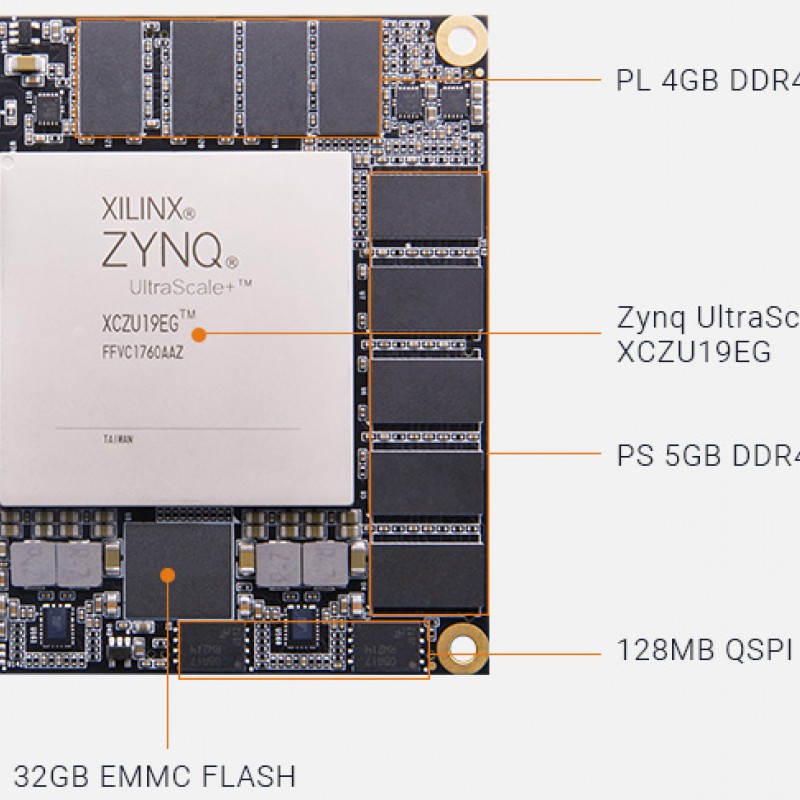

● 5 GByte (72-bit) DDR4 SDRAM with ECC on PS
● 4 GByte (64-bit) DDR4 SDRAM on PL
● 2 x 64 MB QSPI Flash
● 32 GB eMMC Flash
● PCIe® Gen3 ×16 (PL), PCIe® Gen2 ×4 (PS)
● Gigabit transceivers
◆ 4 x GTR, up to 6 Gbps
◆ 32 x GTH, up to 16.3 Gbps
◆ 16 x GTY, up to 28.21 Gbps● User I/Os
◆ 54 PS MIOs
◆ 336 FPGA I/Os (96 HD + 240 HP)● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 80 x 80 mm form factor

Product Information

Specifications
What's Inside

Module Features

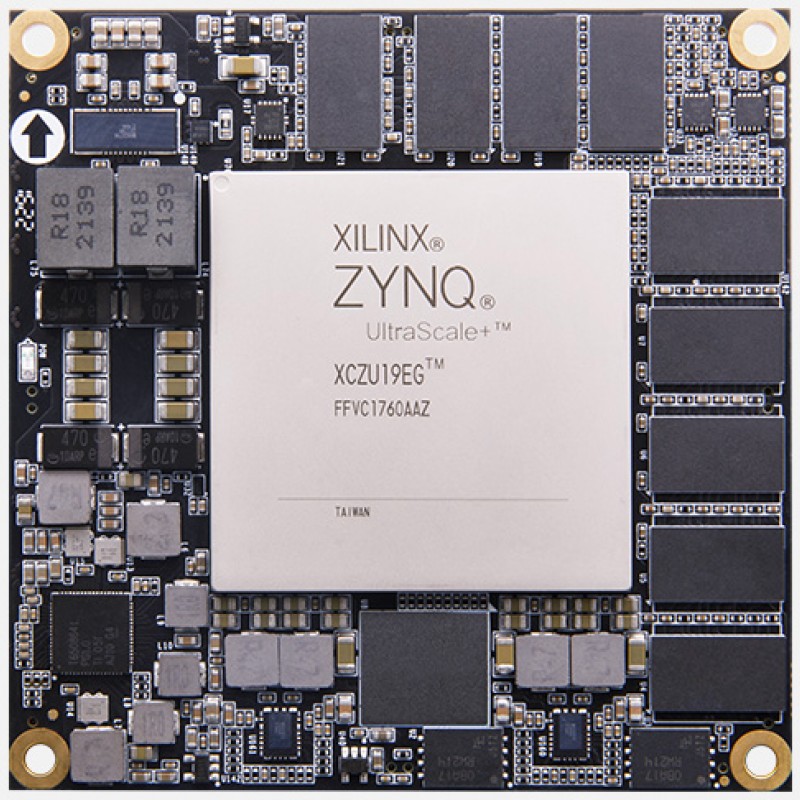

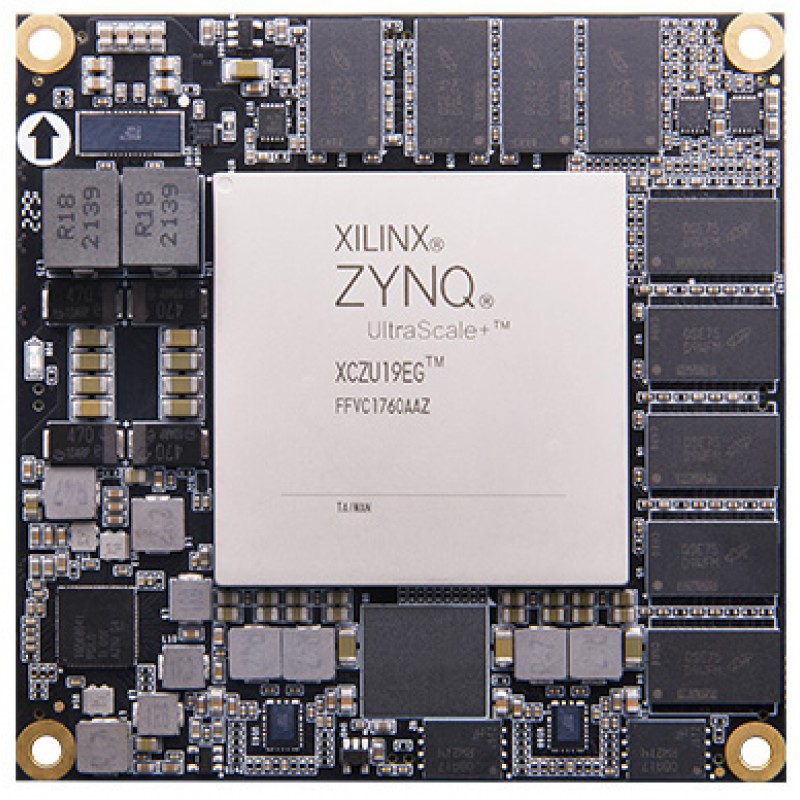

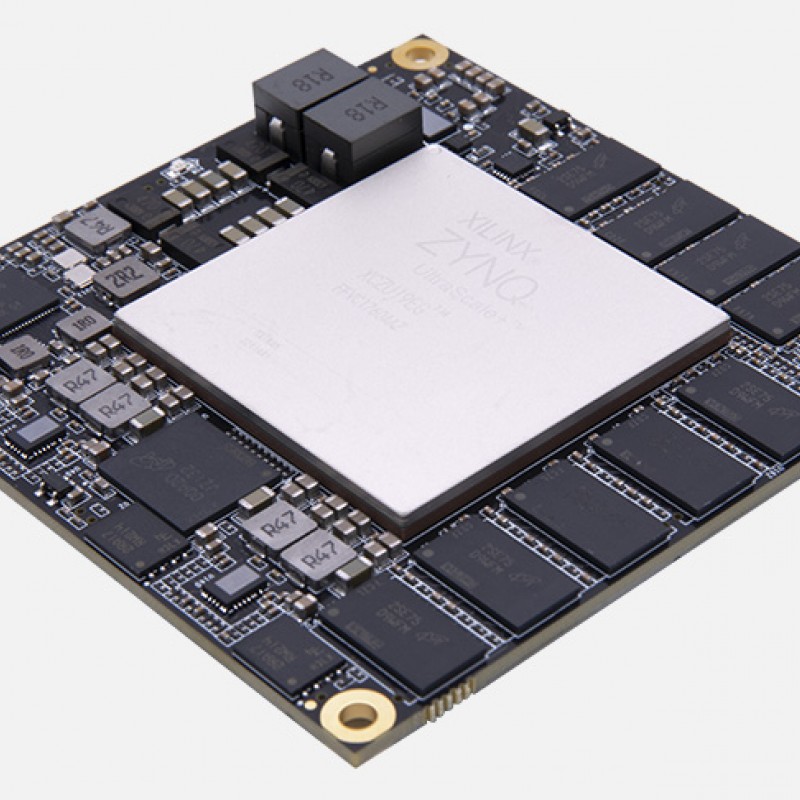

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU19EG-2FFVC1760I

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8080 Heatsink Kit, the FAN8080 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ UltraScale+™ MPSoC development boards Z19-P that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

Module Architecture

Click on the image to view a larger image.

Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU19EG System-on-Module/SoM

MPSoC SoM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 ECC SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC	GTH	GTY	Temp. Range	USD Price
ACU17EG		XCZU17EG-2FFVC1760I	5 GB	4 GB	2 x 64 MB	32 GB	32	16	-40°C~+85°C	TBD
ACU19EG	√	XCZU19EG-2FFVC1760I	5 GB	4 GB	2 x 64 MB	32 GB	32	16	-40°C~+85°C	4493

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

ACU19EG User Manual
2025-04-16
Download
ACU19EG Schematic Diagram
2023-03-10
Download
ACU19EG 3D STEP
2023-03-10
Download
