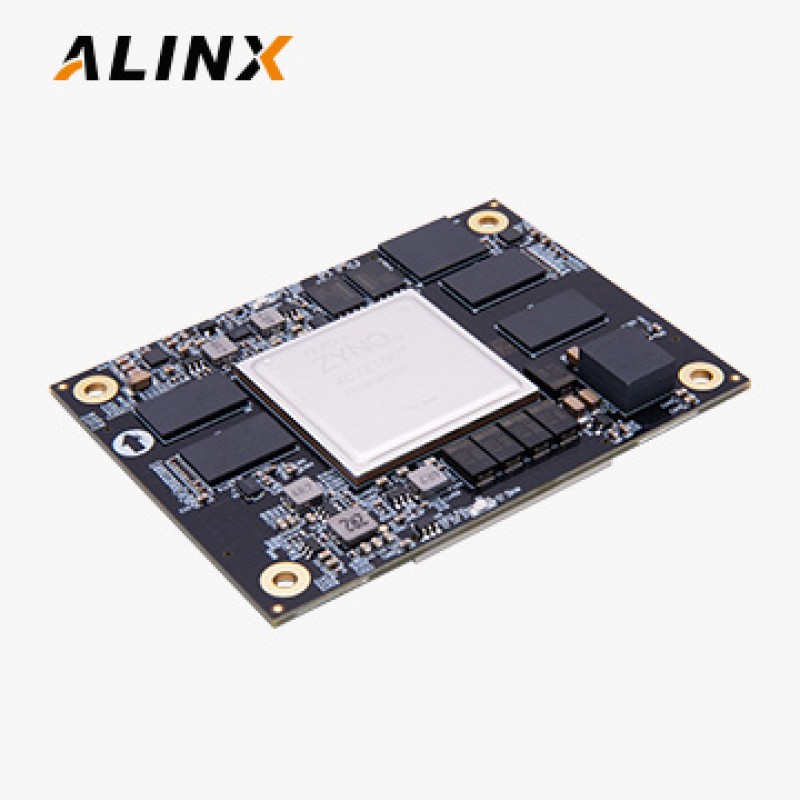

AC7Z100C SoM with AMD Zynq™ 7000 SoC XC7Z100

AC7Z100C SoM with AMD Zynq™ 7000 SoC XC7Z100
AC7Z100C SoM with AMD Zynq™ 7000 SoC XC7Z100
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
  • Stock: In Stock
  • Model: AC7Z100C V2.0
  • SKU: AC7Z100C V2.0
ALINX
190 samples sold
Based on 0 reviews. - Write a review
$943.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Product Description

The AC7Z035B/AC7Z045/AC7Z100C System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications

  • Automotive

    ● Road Sign Recognition

    ● ADAS

    ● Smart Transportation

  • Communication Network

    ● Ethernet Backhaul

    ● Small Cell Baseband

    ● Network Switch

    ● Flexible radio platform

  • Industrial

    ● Motor control

    ● Industrial Control

    ● Industrial IoT

    ● Instrumentation

    ● Smart Grid

  • Video and Image Processing

    ● Professional Cameras

    ● Computer Vision

    ● Machine Vision

  • Medical

    ● Endoscop

    ● Ultrasound, CT, MRI



Key Features

  • ● AMD/Xilinx Zynq™ 7000 SoC:
    ◆ ARM® dual-core Cortex™-A9 up to 800 MHz
    ◆ Kintex 7 28nm FPGA fabric    ● Pluggable module with 4 x Panasonic board-to-board connectors
    ● 1 GByte (32-bit) DDR3 SDRAM on PS
    ● 1 GByte (32-bit) DDR3 SDRAM on PL
    ● 64 MB QSPI Flash
    ● 8 GB eMMC Flash
    ● PCIe® Gen2 ×8 (PL)
  • ● Gigabit transceivers
    ◆ 16 x GTX, up to 12.5 Gbps (AC7Z035B is 8 X GTX)● User I/Os
    ◆ 37 PS MIOs
    ◆ 188 FPGA I/Os (140 3.3V(AC7Z035B only 96 3.3V) + 48 1.8V)    ● Work temperature range of -40°C to +85°C
    ● 5V single supply
    ● Dimensions: 80 x 60 mm form factor

Product Information

  • Specifications
  • What's Inside
Module Features

Featuring the AMD/Xilinx Zynq™ 7000 SoC XC7Z100-2FFG900I


* If you want to design a base board based on this Zynq™ 7000 SoC system-on-module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ 7000 SoC development boards AX7Z100B that uses this Zynq™ 7000 SoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

Module Architecture

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.


What's Inside the Box

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z100 System-on-Module/SOM

Zynq 7000 SoC SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelZynq 7000 SoCDDR3 SDRAM (PS)DDR3 SDRAM (PL)QSPI FlasheMMCGTX

Temp. Range

USD Price

AC7Z100C√XC7Z100-2FFG900I1 GB1 GB64 MB8GB16-40°C~+85°C943
AC7Z045√XC7Z045-2FFG900I1 GB1 GB64 MB8GB8-40°C~+85°C689
AC7Z035B√

XC7Z035-2FFG676I

1 GB1 GB64 MB8GB8-40°C~+85°C599
AC7Z030XC7Z030-2FFG676I1 GB1 GB64 MB8GB4-40°C~+85°CTBD


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

  • AC7Z100C User Manual

    2025-01-02
    Download
