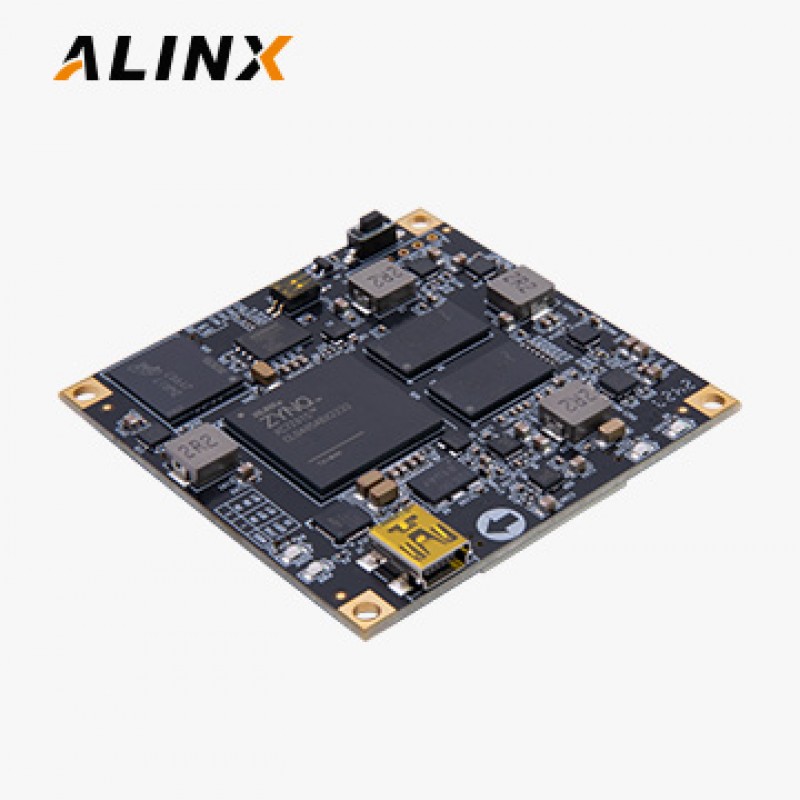

The AC7015B System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.
Applications
Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
Medical
● Endoscop
● Ultrasound, CT, MRI
Key Features
● AMD/Xilinx Zynq™ 7000 SoC: ◆ ARM® dual-core Cortex™-A9 up to 767 MHz ◆ Artix 7 28nm FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors ● 1 GByte (32-bit) DDR3 SDRAM on PS ● 32 MB QSPI Flash ● 8 GB eMMC Flash
● PCIe® Gen2 x4 (PL) ● Gigabit transceivers ◆ 4 x GTP, up to 6.25 Gbps● User I/Os ◆ 39 PS MIOs ◆ 84 FPGA I/Os (HR)● Work temperature range of -40°C to +85°C ● 5V single supply ● Dimensions: 60 x 60 mm form factor
Product Information
Specifications
What's Inside
Module Features
Featuring the AMD/Xilinx Zynq™ 7000 SoC XC7Z015-2CLG485I
* If you want to design a base board based on this Zynq™ 7000 SoC System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.
* We have Zynq™ 7000 SoC development boards AX7015B that uses this Zynq™ 7000 SoC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock. 2. We offer custom configuration, a MOQ applies. Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials. Please contact us should you have any need.
