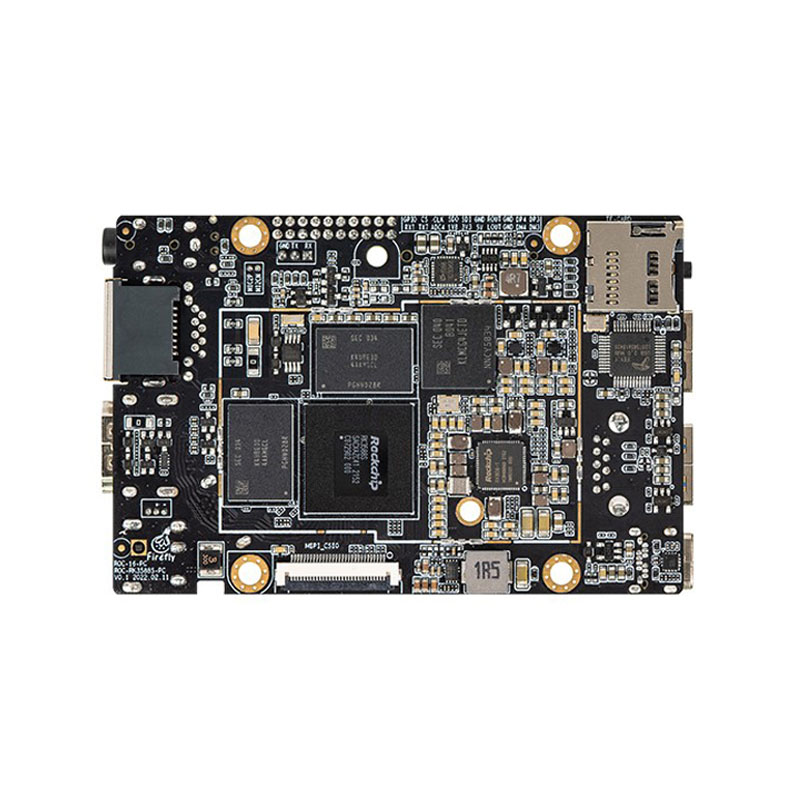

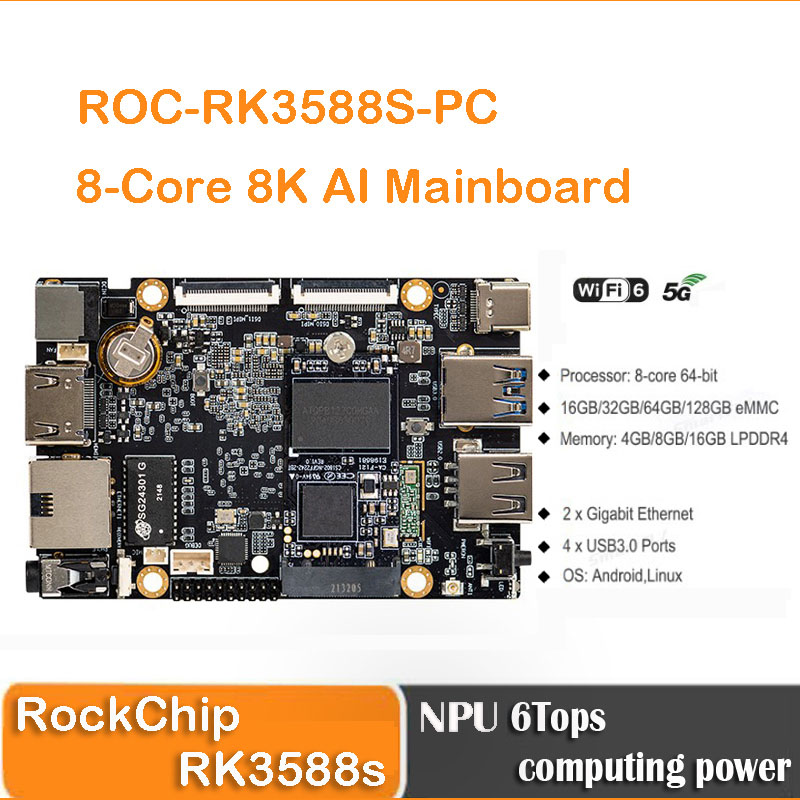

ROC-RK3588S-PC

--8-Core 8K AI Mainboard

Powered by Rockchip RK3588S new-gen 8-core 64-bit processor, the main board can be configured with up to 32GB RAM. Capable of 8K video encoding and decoding, it provides abundant interfaces,supporting NVMe SSD expansion; It supports various operating systems. This mainboard can be used in edge computing, Artificial Intelligence, cloud computing, VR and AR.

RK3588S a new generation
of high-end processor

RK3588S is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, it has frequency up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance in various AI application scenarios.

8K video encoding and decoding

The mainboard supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also supports encoding and decoding simultaneously - up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding can be achieved. The strong video encoding and decoding capability makes 8K HD display and delicate picture quality available.

Super-large 32GB RAM

Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed. It
can meet the application requirements of products with large RAM and large storage.

Multi-channel input and output

It supports HDMI 2.1 8K video output, USB-C (DP1.4) and dual MIPI-DSI multi-channel video output - up to four-screen output with different displays can be achieved. Dual MIPI-CSI camera input is also supported.



Multi-channel input and output

It supports HDMI 2.1 8K video output, USB-C (DP1.4) and dual MIPI-DSI multi-channel video output - up to four-screen output with different displays can be achieved. Dual MIPI-CSI camera input is also supported.



Multi-channel input and output

It supports HDMI 2.1 8K video output, USB-C (DP1.4) and dual MIPI-DSI multi-channel video output - up to four-screen output with different displays can be achieved. Dual MIPI-CSI camera input is also supported.

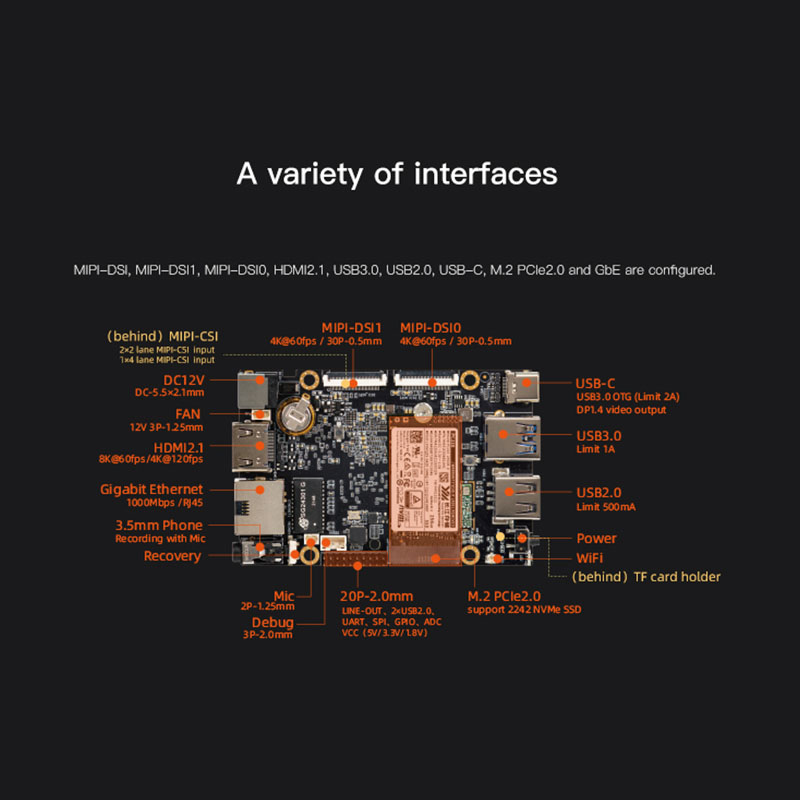

A variety of interfaces

MIPI-DSI, MIPI-DSI1, MIPI-DSI0, HDMI2.1, USB3.0, USB2.0, USB-C, M.2 PCIe2.0 and GbE are configured.

Support various operating systems

Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin and UOS are supported. It supports RTLinux,delivering excellent real-time performance. UEFI Boot is also available. The reliable operation provides a safe and stable system environment for product research and production.

Support various operating systems

Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin and UOS are supported. It supports RTLinux,delivering excellent real-time performance. UEFI Boot is also available. The reliable operation provides a safe and stable system environment for product research and production.

A wide range of applications

The mainboard can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain,smart security, smart home, intelligent retail and smart industry.
